What to Do When Your Washing Machine Shows PE

What PE means in your washing machine

PE error code is a safety fault tied to the machine’s water level sensing system. In most modern washers, a pressure transducer or a pressure switch feeds the controller with real-time readings of how full the drum is. When the reading is outside the expected range for a given cycle, the control board triggers PE to prevent overflow or underfill. If you’re asking what if washing machine shows pe, you’re not alone; it’s a fairly common fault that stops a cycle to protect the drum and your home from water damage. The first step is to verify power, then inspect the sensor-related tubing and connections. A simple reboot can clear transient glitches, and many PE errors are resolved by addressing a blocked air path or a loose hose. Still, some PE faults point to a sensor or control board problem that requires professional attention. The aim of this section is to help you distinguish between quick, safe fixes you can perform yourself and situations that warrant a service call. Throughout the guide we’ll reference typical cost ranges and what to expect from a repair, so you can plan accordingly and avoid unnecessary downtime.

Common causes behind a PE code

PE codes arise from several underlying issues, but most fall into a few reliable categories. The most frequent is an air chamber or hose problem: a kinked or clogged line between the tub and the pressure sensor can produce false readings. A second common cause is a defective pressure sensor or a loose electrical connector to the sensor circuit. Wiring damage from washing cycles, vibration, or previous repairs can also trigger inconsistent sensor data. Less commonly, a software glitch or a failed control board can manifest as a PE error, especially in older models. Water intrusion into the control area, faulty seals around the sensor, or a partially blocked water level tube can also create similar symptoms. If you’ve recently moved the machine or performed a drain or service, double-check all sensor-related hoses and connectors. While it’s tempting to assume a complicated fault, most PE codes at the consumer level are tied to sensor hoses, fittings, or an easy reset rather than a full PCB replacement.

Immediate safety steps you can take

Before touching any internal components, unplug the machine and wait a few minutes to discharge capacitors. Then open the access panel or top cover only if you’re comfortable and safe; never probe live electronics. Check the air tube that runs from the drum to the pressure sensor: look for kinks, cracks, or obvious disconnections. If the tube is crushed under the weight of laundry, free it and re-seat the connections firmly. Inspect the pressure sensor hose for signs of wear or mineral buildup, and clean or replace as needed. Make sure the drain hose and water inlet hoses are secure and not pinched; a kinking in a hose can indirectly affect sensor readings by altering the water fill pattern. After these checks, reassemble, restore power, and run a short wash or diagnostic cycle to see if PE clears. If the error reappears, document the exact code and cycle stage and prepare for a service call.

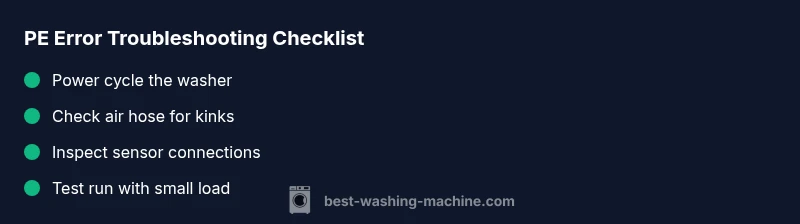

Step-by-step fix: air hose and pressure sensor check

1. Power down and unplug the washer. 2) Access the pressure sensor area—remove the back or top cover as needed to reach the sensor tube and its connections. 3) Detach the air hose from the sensor and inspect the interior for dust, lint, or moisture; clean with a dry cloth and ensure the connector is dry before reattachment. 4) Inspect the small air chamber or elbow fitting for cracks; replace if damaged. 5) Reconnect the hose securely and verify there are no air leaks at the sensor. 6) Reconnect power and run a test cycle with a small load. If PE reappears, you may need to replace the sensor or have the control board tested by a pro. Pro tip: take a photo of each connection before disassembly to simplify reassembly.

Other causes and fixes

PE may also be triggered by issues outside the sensor path. A clogged inlet or a partial leak around the door seal can cause abnormal fill behavior, which the sensor misreads as a failure. Check the water inlet filters and hoses for debris; clean filters if present. A failing or undersized pump, or a drain line with air lock, can cause the tub to fill irregularly, again confusing the sensor. If you recently replaced the drain pump or hoses, re-check their connections. If the washer has a history of frequent resets, consider updating or re-flashing the control board if your model supports it. Finally, remember that some PE faults are intermittent; documenting when the error happens (cycle type, load size, and water pressure) helps a technician diagnose the root cause more quickly.

Preventing PE errors in the future

Routine maintenance minimizes PE occurrences. Keep hoses clean and free of kinks, especially after moving the machine. Regularly inspect the air path for obstructions such as lint or detergent buildup; consider a soft brush and compressed air if available. Use the recommended detergent and avoid overloading the drum, which can cause uncertain fill patterns. If you have hard water, treat scale buildup in the sensor tube with a gentle cleaner designed for appliance components. Finally, maintain a consistent service schedule with a qualified technician, especially for models older than seven to ten years. By keeping the sensor system clean, connectors tight, and firmware up to date, you reduce the likelihood of PE codes and extend the life of your washer.
