Washing Machine Lid Switch Repair: Step-by-Step Guide
Learn how to diagnose and repair a washing machine lid switch with a safe, actionable plan. This guide covers symptoms, tools, replacement, testing, and maintenance to keep laundry days running smoothly.
To fix a stuck or faulty lid switch on your washing machine, this guide walks you through diagnosing symptoms, unplugging safely, testing with a multimeter, and replacing components as needed. By following Best Washing Machine’s step-by-step process, you can handle common lid-switch failures yourself with confidence and minimize downtime in your home.
Understanding the Lid Switch: How it Protects and When It Fails
The lid switch in most top-load washing machines acts as a safety interlock and as a signal to the control board that the lid is closed. When the lid is up, the switch opens the circuit and prevents the machine from spinning or filling. Over time, the plunger can wear, the wiring harness can become loose, or the switch can stick. Symptoms tracked by homeowners often include the washer not starting, the drum not tumbling, or the lid remaining locked after a completed cycle. According to Best Washing Machine, a failing lid switch is one of the most common DIY repair topics; addressing it wisely can save time and money. But keep in mind that some models use different switch designs, including pressure switches and micro-switches, so confirm compatibility before buying a replacement.
A good diagnosis starts with confirming that the symptom aligns with a lid-switch issue rather than a power or control fault. If you can reproduce the symptom by pressing or manipulating the lid, you’re moving in the right direction. The goal is to isolate the switch assembly from the rest of the control system, test its electrical continuity, and verify that mechanical action (the lid being closed) changes the circuit as intended. This is the foundation of a successful lid switch repair and a safer, more reliable washer.
Common Symptoms That Signal a Bad Lid Switch
Common signs of a failing lid switch include: the washer refuses to start, the lid stays locked after a cycle, the drum won’t spin, or you hear a clicking sound when you press the lid. If your washer fills but doesn’t agitate, or stops mid-cycle with no error code, a bad lid switch is worth inspecting first. Based on Best Washing Machine analysis, lid-switch issues are among the frequent repair topics that homeowners encounter. A quick visual check can sometimes reveal a damaged plunger, a cracked switch housing, or loose wiring harness connections. Always rule out a blown fuse or a tripped breaker first, then proceed to the lid switch test if power is present.
Tools and Safety Precautions
Before you touch any wiring, unplug the washer and switch off the circuit breaker for the dedicated outlet. Use a dry, static-free workspace and wear insulated gloves if available. Gather essential tools: a multimeter, Phillips and flathead screwdrivers, needle-nose pliers, a replacement lid switch compatible with your model, and electrical tape. If you’re unsure about model compatibility, refer to your user manual or the manufacturer’s service guide. Safety first means securing the cabinet, avoiding water exposure, and never bypassing safety switches to force a cycle.
Diagnosing the Lid Switch: Step-by-Step Checks
- Access the lid switch by removing the top panel or control console according to your model’s service manual. 2) Inspect the plunger for wear or misalignment; a depressed plunger that doesn’t return to its resting position often indicates a worn switch. 3) Check the wiring harness for loose connections, damaged insulation, or corroded terminals. 4) With the multimeter set to continuity, test the switch: it should show continuity when the lid is closed and no continuity when the lid is open. 5) If the switch fails the continuity test, replace it with a compatible unit before reassembling. Pro tip: take a photo of wire routing before removal to aid reassembly.
Replacing the Lid Switch: A Practical Tutorial
Replacing the lid switch involves removing the old component and installing the new one in the same orientation. Start by disconnecting all power and removing the panel that houses the switch. Detach the wires one at a time, keeping track of where each terminal belongs. Mount the new switch securely, reconnect the wires in the same order, and ensure the plunger aligns with the lid. Reassemble the cabinet and perform a quick test by closing the lid and selecting a gentle cycle. If the machine starts and stops correctly, you’ve likely resolved the issue. Always verify model-specific wiring diagrams to avoid mis-wiring or misalignment.
Wiring and Harness Considerations
Wiring in the lid-switched circuit can differ by model. Some washers use a dedicated switch harness, while others route through the main control board. When removing or replacing wires, label or photograph each connection, especially if multiple wires share a color. Ensure insulated terminals and proper crimping; loose connections are a frequent cause of intermittent operation. If you notice a frayed harness or damaged insulation, replace the entire harness or segment to prevent future failures. After replacement, double-check all ground connections and test for continuity again to confirm a solid restore.
Testing After Replacement: Verification Steps
Power up the washer and run a non-load cycle to verify the lid switch operation. Observe that the drum remains unlocked when the lid is opened and that the cycle progresses only when the lid is closed. If the washer still behaves erratically, re-check the alignment of the plunger and ensure the switch sits firmly in its mount. The test should confirm both electrical continuity (lid closed) and mechanical engagement (lid fully closed). If any anomalies appear, revisit the wiring harness and the switch installation to correct minor misalignments.
Maintenance Tips to Prevent Future Failures
Keep the lid switch area clean from detergent residue and lint that can interfere with movement. Periodically inspect the switch plunger for wear and replace the switch at the first signs of sticking. Consider adding a small dehumidifier or improving airflow around the washer to prevent corrosion on terminals. Storing spare switches in your laundry area ensures you can replace the part quickly if the switch becomes unreliable again. Regular checks can extend the life of the lid switch and reduce the risk of mid-cycle failures.
When to Call a Pro: Safety and Limits
If you’re uncomfortable with electrical testing, or if the model has an integrated control module with fragile connectors, it’s prudent to contact a qualified appliance technician. Some washers require special tools or model-specific procedures that go beyond basic troubleshooting. A professional can verify the switch with specialized test rigs and confirm whether the problem lies with the switch or another component in the control system. Remember: safety first and know when DIY hands-on work reaches its limit.
Tools & Materials
- Replacement lid switch compatible with your model(Check model number and ensure the switch type matches (micro-switch vs. pressure switch).)
- Multimeter(Set to continuity or resistance; test with lid closed and open.)
- Phillips and flathead screwdrivers(Uses both sizes for panel screws and terminal connections.)
- Needle-nose pliers(Useful for releasing stubborn terminals without snapping wires.)
- Electrical tape or wire caps(Seal exposed connections and prevent short circuits.)
- Service manual or model-specific wiring diagram(Helpful for model-specific wiring layouts (optional but recommended).)

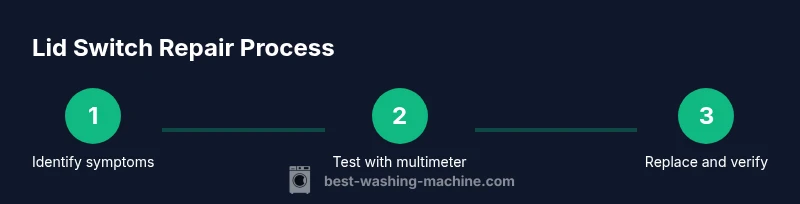

Steps
Estimated time: 30-60 minutes
- 1
Power down and access the switch
Unplug the washer or switch off the dedicated breaker. Remove the top panel or control console per your model's manual to reveal the lid switch housing. This initial access is necessary to inspect the switch and wiring safely.
Tip: Take a photo of the wiring layout before disconnecting anything to aid reassembly. - 2
Inspect the switch and plunger
Check the plunger for wear or sticking. Look for a cracked housing or bent plunger that may prevent full closure. If the plunger doesn’t return to its resting position, the switch may be failing.
Tip: Gently operate the plunger by hand to feel for smooth movement; any resistance warrants replacement. - 3
Test continuity with a multimeter
With the washer unplugged, set the multimeter to continuity. Close the lid and test the switch terminals; you should see continuity when closed and none when opened. A failed test indicates a faulty switch.
Tip: If you see inconsistent readings, the wiring or switch may be intermittently shorting; replace the switch rather than chasing a loose wire. - 4
Remove the old switch and install the new one
Disconnect power again, carefully detach the old switch, and mount the new switch in the same orientation. Reconnect the harness using the original terminals. Ensure the plunger aligns with the lid so pressing the lid actuates the switch reliably.
Tip: Label wires if needed and reuse the original mounting screws; avoid forcing the switch into misalignment. - 5
Reassemble and perform a test run
Reattach the control panel, restore power, and run a short cycle with a light load to confirm proper operation. Verify the lid lock and cycle progression as the lid is opened and closed.
Tip: Listen for any unusual clicking sounds; a new switch should operate quietly and consistently. - 6
Document and monitor performance
Record the replacement date and part number, and monitor the washer over the next few cycles for signs of recurring issues. Early detection helps prevent a repeat failure and reduces unplanned downtime.
Tip: Keep a small note in your maintenance log near the washer.
FAQ
What is a lid switch and what does it do?
A lid switch is a safety interlock and sensor that tells the washer that the lid is closed. It prevents the machine from starting or spinning if the lid is open. Replacing a faulty switch often restores normal operation.
The lid switch is the safety sensor that stops the machine if the lid is open; replacing it usually fixes start or spin issues.
Can I test the lid switch without removing the panel?
Some models allow basic checks from the outside, but most tests require roof panel removal to access the switch terminals. Accessing the switch ensures a reliable continuity test.
Usually you need to access the switch to test it properly.
Will replacing a lid switch void my warranty?
In many cases, DIY lid-switch repair does not void a warranty if you use manufacturer-approved parts and follow proper procedures. Always check your model’s warranty terms.
DIY replacement with the right parts often won’t void the warranty, but check your terms.
Is this repair safe for renters?
Yes, as long as you follow basic electrical safety: unplug the unit, work dry, and avoid tampering with the main controls. If you’re uncomfortable, seek professional help.
Renters can do it safely if they unplug the unit and stay dry.
What if the washer still won’t start after replacement?
If a new lid switch doesn’t fix the issue, the problem may lie in the control board, wiring harness, or a secondary safety interlock. Recheck wiring and consult a professional if needed.
If it still won’t start, the issue might be elsewhere in the control system.
Do I need any special tools for the replacement?
Most lid-switch replacements require standard hand tools and a multimeter. Ensure you have the model-specific diagram to avoid miswiring.
Common tools and a multimeter are usually enough.
Watch Video
The Essentials
- Diagnose symptoms before disassembly.
- Power off and isolate the circuit to stay safe.
- Test continuity to confirm lid-switch failure.
- Match replacement parts to your model.
- Verify operation with a test cycle.
