How to Fit a Washing Machine Door Seal
Learn how to fit a washing machine door seal with a clear, safe, and thorough step-by-step guide. Includes tool lists, safety tips, and testing for leaks to ensure a snug seal.
By following these steps, you’ll know how to fit a washing machine door seal and stop leaks from the door. Start by confirming you have the correct seal size and a powered-off, disconnected machine. You’ll need a replacement gasket, basic hand tools, towels, and a clean workspace. This quick guide outlines the essential steps, safety checks, and a leak-test to confirm a snug fit.

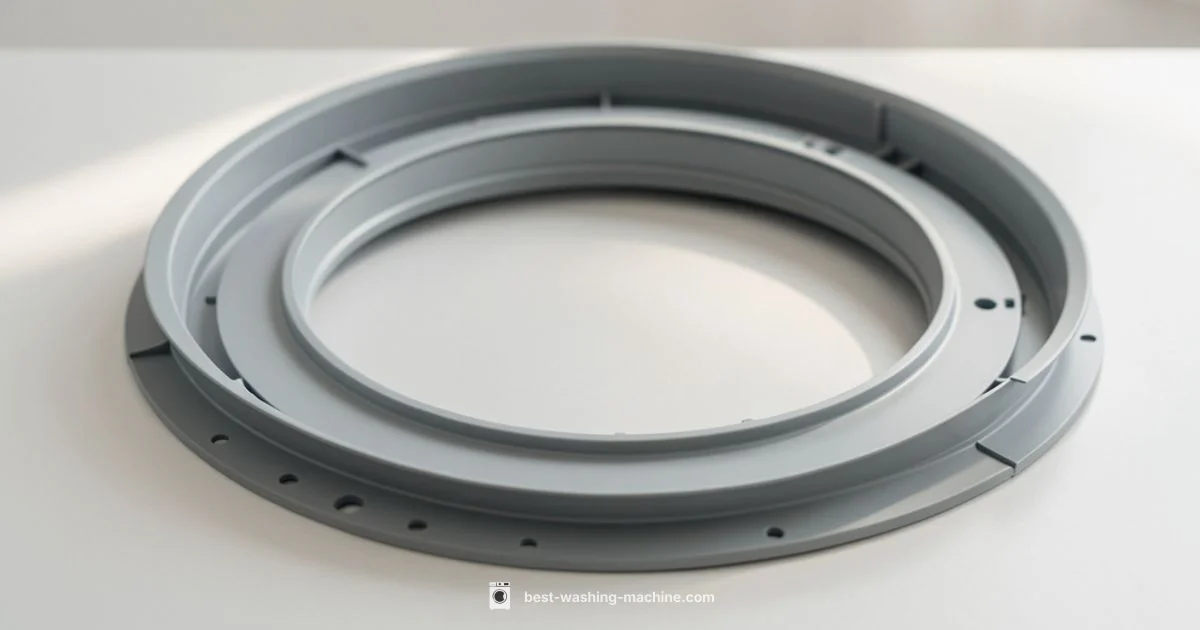

Anatomy of a washing machine door seal
Every front-loading washing machine relies on a door seal, sometimes called a gasket, to keep water inside the drum and away from the surrounding cabinet. The seal is a flexible rubber or elastomer ring that sits between the door glass and the drum opening. Over time, heat, detergents, and repeated compression can cause cracks, flattening, or curl in the inner lip. A worn seal may not seal evenly, allowing water to seep at the bottom or sides, especially during high spin cycles. When fitting a new seal, you must understand the orientation of the lip, the inner reinforcing ring, and the location of any tabs or notches designed to snap into the drum housing. Many seals have a spring-loaded or metal stiffener inside that helps the lip press against the glass; some older models use simple rubber. Before you start, confirm you have the correct seal size for your model by checking the model number and the manufacturers guide. If the part doesn’t match, you risk leaks or damage to the door frame. This section outlines the anatomy so you can recognize what to replace and how the new seal should seat.
Signs your door seal needs replacement
A door seal can degrade slowly, and the symptoms may be subtle at first. Look for water pooling around the door frame during or after a cycle, especially on the bottom edge. You might notice a musty or moldy odor due to trapped moisture or dampness inside the gasket. Visible cracks, tears, or curling along the lip indicate material failure. Uneven washing results or leaks that appear only during high-speed spins are common clues. If you see any of these signs, plan to inspect and, if needed, replace the seal. Remember that a compromised seal not only risks water damage but also reduces washing efficiency and increases energy use due to longer dry times.
Safety and preparation before you start
Safety first: unplug the appliance and, if possible, switch off the water supply to the machine. Clear the workspace and place towels or a shallow tray to catch any residual water. Gather the tools and parts you’ll need in advance to avoid mid-task trips to the toolbox. If your door seal is stained or moldy, a mild detergent and soft cloth can help you assess the condition of the groove where the seal sits. Take photos from multiple angles before disassembly to help you reassemble the new seal correctly. Ensure you have the model-compatible seal; a mismatched gasket can worsen leaks rather than fix them.

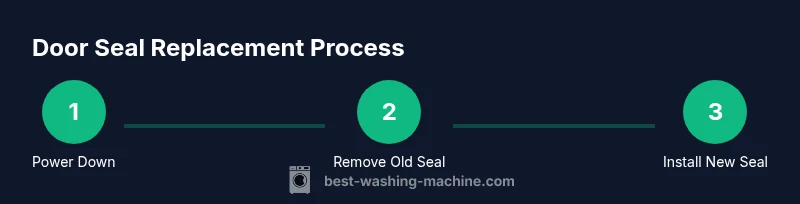

Understanding the replacement process at a high level
Replacing a door seal involves removing the old gasket, cleaning the groove thoroughly, and installing the new seal so the lip faces inward toward the drum. Orientation matters: most seals have a molded arrow, notch, or relief that aligns with the door and opposing tool pockets. You’ll likely need to detach retaining clips or a metal band, lift the old seal away, and tuck the new one into the groove. Once seated, reattach any clips and verify the seal sits evenly around the circumference. Finally, reattach the door, plug the machine back in, and run a test cycle with minimal water to confirm there are no leaks. Take your time with alignment; rushing can cause folds or gaps that lead to leaks.
Common mistakes and how to avoid them
Two frequent mistakes are misaligning the seal orientation and tearing the rubber lip during removal or installation. Avoid forces that kink the gasket and never use sharp tools to pry the seal free. Don’t skip cleaning the groove—dirt and detergent residues prevent a full seal. Misplaced clips or clips left loose can cause the seal to slip. Label or photograph clips and clips locations during removal to ensure correct reassembly. If your model uses a spring or stiffener, ensure it’s properly seated; a wobbly seal is a leaky seal.
Aftercare: testing for leaks and long-term care
After installation, run a short, empty wash cycle with warm water to check for leaks around the door. Carefully inspect the entire gasket for folds or gaps at several spin points. If leaks persist, turn off the machine and re-check the seal seating and clip positions. Regular maintenance includes wiping the seal with a mild detergent after cycles, drying it to prevent mold, and inspecting for wear every 6–12 months depending on usage. A clean groove and properly seated seal extend the life of the gasket and protect the door frame from corrosion.
Authority sources
For further guidance, consult authoritative sources that cover appliance maintenance and safety guidelines. These sources provide general best practices that align with door seal replacement work and safe electrical handling. Always follow your manufacturer's manual for model-specific instructions.
Additional notes for different models
Model variations exist: some washers use a single-dlip seal with no separate spring, others employ a reinforced bead and a flexible lip. Always verify the installation direction and orientation against the service manual for your exact model. If your appliance is under warranty, check terms—self-repairs may affect coverage. If in doubt, contact a professional technician, especially if you encounter stubborn clamps or unusual seal shapes.
Tools & Materials
- New washing machine door seal (gasket) or replacement kit(Ensure size matches your model; check the drum opening and door alignment.)
- Screwdriver set (Phillips and flathead)(Philips #2 is common, but verify your screws types before starting.)
- Towels or absorbent cloths(To catch water and keep the workspace dry.)
- Soft brush or old toothbrush(For cleaning the groove and tight spaces.)
- Mild detergent and water(Use for pre-cleaning the groove and door opening.)
- Container or tray for small parts(Keeps screws and clips organized.)
Steps
Estimated time: 60-90 minutes
- 1
Power down and unplug
Unplug the washing machine from the mains and, if possible, shut off the water supply. Move the unit away from the wall to access the door opening. This first step reduces the risk of electric shock and water exposure during the seal replacement.
Tip: Always start by disconnecting power before touching any internal components. - 2
Remove the door seal retaining components
Open the door fully and locate the retaining band or locking clips that secure the seal to the cabinet or drum lip. Gently release or remove these fasteners, keeping track of each clip. If there is a metal stiffener, note its position for reinstallation.
Tip: Take photos during disassembly to guide reassembly and prevent misplacement of clips. - 3
Loosen and remove the old seal
Carefully work the old gasket free from the groove. Do not yank or tear it; use a small tool if needed to ease it out of tight spots. If the lip sticks, rotate the drum manually to access all edges.
Tip: Work slowly from one side to the other to avoid damaging the drum lip. - 4
Clean the seal groove and door opening
Wipe away soap scum, mold, and debris from the groove and the mating surface. A soft brush helps dislodge stubborn grime. A clean seating surface ensures a tight seal once the new gasket is installed.
Tip: Dampen the cloth but avoid soaking the gasket area; moisture can promote mold growth if left long-term. - 5
Position and install the new seal
Slide the new gasket into the groove, aligning any notches or ridges with the drum or door as indicated by the manual. Ensure the inner lip faces inward toward the drum. Reattach any stiffener and check that the seal sits evenly around the circumference.
Tip: Double-check orientation against model guidelines; a misaligned lip will leak. - 6
Secure retaining clips and test placement
Reinstall all clips and ensure they are snug. Gently tug the gasket to verify it seats firmly in the groove. Reconnect any hoses or bands that were moved during removal, then close the door and inspect for alignment.
Tip: A loose clip is a common source of leaks; verify every fastener is secure. - 7
Run a leak test and finalize
Plug the machine back in and run a short, empty cycle with warm water. Observe the door edge closely for any signs of leaking along the gasket. If leakage occurs, pause and recheck seating and clip positioning.
Tip: Use towels to catch any initial seepage and to keep the area dry during testing.
FAQ
Do I need to replace the entire door seal or just the gasket?
In most cases, you replace the gasket. Do model-specific checks because some units use a combined door boot.
Most washers use a door gasket; you’ll usually replace the seal, but check your model’s design.
Can I replace the seal without professional help?
Yes, with the right tools and following steps carefully, many homeowners can replace a door seal themselves.
Yes, with the right steps, you can replace it yourself.
What tools are needed for this job?
A screwdriver set, a replacement seal kit, towels, and a clean workspace are usually enough.
You’ll typically need a screwdriver and a seal kit.
How long does it take to fit a door seal?
Plan for about 60-90 minutes, depending on your model and experience.
About an hour or so for most people.
Watch Video
The Essentials
- Confirm seal compatibility with model before purchase
- Prepare a clean, dry workspace and organize fasteners
- Align lip, notches, and stiffeners accurately
- Test thoroughly for leaks after reassembly
