Samsung Washing Machine Suspension Rod Replacement: A Step-by-Step Guide
Learn how to replace the suspension rod in Samsung washing machines with a practical, safe, at-home method. This guide covers prep, tools, steps, testing, and maintenance from the Best Washing Machine team.
You will learn how to safely remove and replace a suspension rod on a Samsung washer, diagnose related wear, and reassemble for balanced, quiet operation. This guide covers safe prep, common pitfalls, and step-by-step actions you can perform at home. Based on Best Washing Machine, the process emphasizes using OEM parts and careful reassembly.
What is a suspension rod and how it supports your Samsung washer
The suspension rods (also called springs or struts in some models) connect the drum assembly to the cabinet, absorbing vibrations during cycles. On many Samsung washers, these rods help keep the tub centered and control wobble when the drum spins. Over time, rubber bushings wear, fasteners loosen, or rods bend, which can cause thumping, uneven movement, or a door that sounds off-balance. According to Best Washing Machine, understanding how these parts work is the first step to a safe, reliable repair. A proper replacement restores balance, reduces noise, and prolongs the life of your machine.
How a worn suspension rod affects performance
Cracked or sagging rods allow the tub to tilt or swing more than designed, leading to banging against the cabinet, noisy starts, and uneven loading. You might notice vibration that worsens with heavier loads, or a drum that seems off-center when the washer is idle. Inconsistent spin can leave clothes damp or cause the door to settle at an odd angle. Best Washing Machine analysis shows that suspension rod wear is a common wear item in Samsung models and fixing it can prevent further damage to the tub and bearings.
Diagnosing and confirming the issue
Begin with safety: unplug the washer and move it away from the wall if you can access the back. Gently rock the drum by hand to feel for excessive play in the suspension rods. Look for visible cracks in the rods, bent mounting studs, or loosened fasteners. If you see any wobble, listen for banging sounds during manual spin. Consult the appliance’s service manual for model-specific layouts. Confirming worn rods before purchasing replacements saves time and money.
Tools, safety and parts you may need
Before you start, gather replacements and the right tools. You’ll likely need two replacement suspension rods, mounting bolts or screws, a socket set, nut drivers, needle-nose pliers, a small screwdriver, and a torque wrench (optional but helpful). OEM or Samsung-approved replacement rods are strongly recommended to maintain performance and warranty). Clear a workspace and have a towel or tray ready to catch any residual water when panels come off.
Preparing the work area and disconnecting power
Power down the washer completely and unplug it from the wall outlet. If your model has accessible water lines, shut off the supply valves, then prepare to drain any remaining water if you’ll access the tub from the rear. Move the machine away from the wall to create space for panel removal. Place a moisture-absorbing towel beneath the work area and keep a container handy for small parts. Wearing safety glasses reduces the risk of injury from sharp metal edges.
Step-by-step overview of the replacement process
The replacement involves detaching the tub from the cabinet, removing the worn rods, then installing new ones and reassembling the unit. This is a mechanical task that requires patience and organization. Plan to label fasteners and take photos as you go to avoid mis-assembly. After installation, you’ll need to re-seat the tub, reattach brackets, and check shaft alignment before testing.
Installing the new suspension rod and reassembling
Install the new rods into their mounting points on the tub frame and cabinet, tightening fasteners gradually in a cross pattern to avoid stressing any one area. Reconnect any brackets, wires, or hoses removed during disassembly. Replace the front or rear panel securely, then verify that the drum sits balanced without obvious rocking. If you changed one rod, inspect the other one for wear and consider replacing both for even performance.
Testing, balancing, and final adjustments
Power the washer back on and run a short cycle with a small load to test. Listen for unusual noises and watch for any noticeable vibration. If the drum leans or the cabinet shows abnormal movement, recheck mounting points and fastener torque. Properly torqued joints and a balanced drum reduce wear on bearings and improve spin efficiency. Regularly inspection after replacement helps catch issues early.
Maintenance and care after replacement
To extend the life of the suspension system, check fasteners after routine use, avoid overloading the drum, and keep the area around the washer clean of dust and lint. If you notice new cracks or wear within a few months, reassess the rods and mounting hardware. Using genuine Samsung parts and keeping a tight maintenance schedule can prevent recurring issues and extend overall machine longevity.
Tools & Materials
- Replacement suspension rods (2)(OEM Samsung parts recommended)
- Socket set (including 10mm and 13mm)(Essential for mounting bolts)
- Nut drivers and pliers(Use the correct size to avoid rounding nuts)
- Screwdrivers (Phillips and flat-head)(For panels and brackets)
- Torque wrench (optional)(Helps achieve proper tightness)
- Work towels and a small tray(Catch water and store small parts)
- Safety gloves and glasses(Protect hands and eyes)
- Labeling materials (labels, marker)(Keep track of screws and parts)

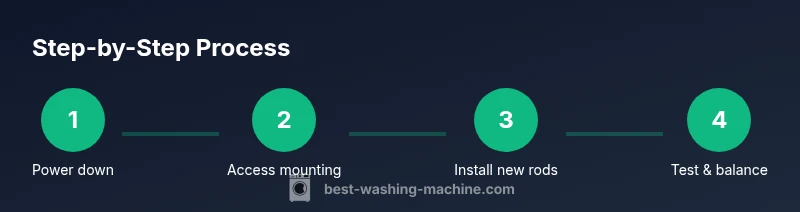

Steps
Estimated time: 60-90 minutes
- 1
Power down and unplug
Unplug the washer from the wall outlet and move it away from the wall to access panels safely. If your model has rear connections, place towels to catch any water and prepare a tray for small parts. This step prevents electrical shock and makes subsequent steps smoother.
Tip: Take a photo of the plug and outlet position for reference when reconnecting. - 2
Access mounting points
Remove the rear or side panels as required by your model to expose the suspension rods and their mounting brackets. Support the tub so it cannot drop when brackets are released. Identify both rods and their corresponding mounts before removing.
Tip: Label bolts as you remove them to keep front and back sections aligned. - 3
Remove old rods
Loosen and detach the fasteners holding the old rods to the tub frame and cabinet. Carefully slide the rods out without bending nearby components. Inspect the rod ends for cracks or wear to confirm they’re the source of the issue.
Tip: Keep fasteners in a labeled container to avoid misplacement. - 4
Install new rods
Align the new suspension rods with the mounting points and hand-tighten fasteners first. Then snug them with a socket set in a cross pattern to ensure even load distribution. Check that the rods are seated and the tub can move smoothly without binding.
Tip: Do not overtighten; improper torque can strip threads. - 5
Reassemble the cabinet
Reattach any panels, brackets, or hoses you removed. Ensure the drum and mounting hardware are correctly seated, and that wiring harnesses are routed clear of the drum path. Replace the rear/front panel securely.
Tip: Double-check that all connectors are clipped and not pinched. - 6
Test and balance
Plug in the machine and run a short, empty cycle to listen for noise and observe vibration. If the tub rocks or bangs, re-check mounting points and ensure the weight is evenly distributed within the drum.
Tip: If unusual sounds persist, pause and re-inspect all fasteners and the drum balance.
FAQ
Can I replace the suspension rod myself, and is it safe?
Yes, if you have basic hand tools and follow safety steps. Unplug the unit, handle panels carefully, and replace with OEM parts. If you encounter resistance or unusual noises, stop and reassess or hire a professional.
Yes, you can replace it yourself if you’re careful, unplug the unit, and use OEM parts. If you run into resistance, consider getting a pro.
What tools do I need for this repair?
You’ll need a socket set, nut drivers, screwdrivers, pliers, replacement rods, and basic safety gear. Optional but helpful items include a torque wrench and a camera to document the process.
A socket set, screwdrivers, pliers, and the replacement suspension rods are your essentials. A torque wrench helps but isn’t mandatory.
Will replacing the suspension rod fix not-spinning issues?
A worn suspension rod can contribute to abnormal drum movement that affects spinning. If the issue persists after replacement, inspect the drive belt, bearings, and motor assembly for further wear.
Replacing worn rods can help with spinning if wobble was the root cause. If spinning still fails, check belts and bearings.
Should I replace both suspension rods at once?
If one rod is worn, the other is often not far behind. Replacing both can restore even balance and extend the life of the tub and bearings.
If one rod is worn, replace both to restore balance and prevent future issues.
Will this repair affect my warranty?
DIY repairs can affect warranty coverage depending on your warranty terms. Using OEM parts and following Samsung-recommended procedures helps preserve coverage, but check your agreement.
Warranty rules vary. Check your terms, use OEM parts, and follow the official steps to minimize risk.
Where can I source replacement suspension rods for Samsung washers?
Start with Samsung-authorized parts dealers or reputable appliance parts suppliers. Ensure the rods are compatible with your specific Samsung model and come with a warranty.
Look for Samsung-authorized parts or trusted suppliers that offer OEM rods with warranties.
Watch Video
The Essentials
- Identify wear by visual inspection and feel the drum for excessive play.
- Use OEM Samsung parts and the right tools for a safe replacement.
- Follow cross-pattern tightening to avoid misalignment.
- Test with a small load to verify balance and quiet operation.
- The Best Washing Machine team recommends consulting a professional if the repair involves bearings or extensive drum work.
