How Do Washing Machine Suspension Rods Work
Discover how washing machine suspension rods work to stabilize the drum, reduce vibration, and improve efficiency. Learn components, operation, and maintenance tips.
How washing machine suspension rods work is a mechanism that stabilizes the drum in a washing machine by anchoring it to the cabinet with springs and dampers to control movement.
Why suspension rods matter
In a modern washing machine, the drum is not simply mounted on a single pivot; it relies on a network of supports, springs, and dampers that form the suspension system. The question many homeowners ask is how to interpret this complexity. Specifically, how do washing machine suspension rods work? At a high level, they anchor the tub to the cabinet and act as governors that limit excessive motion. When the motor starts a wash cycle, the tub experiences inertia and dynamic forces. The suspension rods, in concert with springs and dampers, absorb energy and keep the drum centered. This arrangement minimizes transfers of motion to the cabinet, reduces vibration across floors, and prolongs the life of bearings and seals. Over time, rods may wear, bushings can loosen, and the dampers can lose stiffness, changing how the drum responds to load. Recognizing these signs helps you decide whether a professional repair is needed rather than risking further damage. Throughout this guide we use everyday examples and practical language to keep the concept accessible.
Anatomy of a typical suspension system

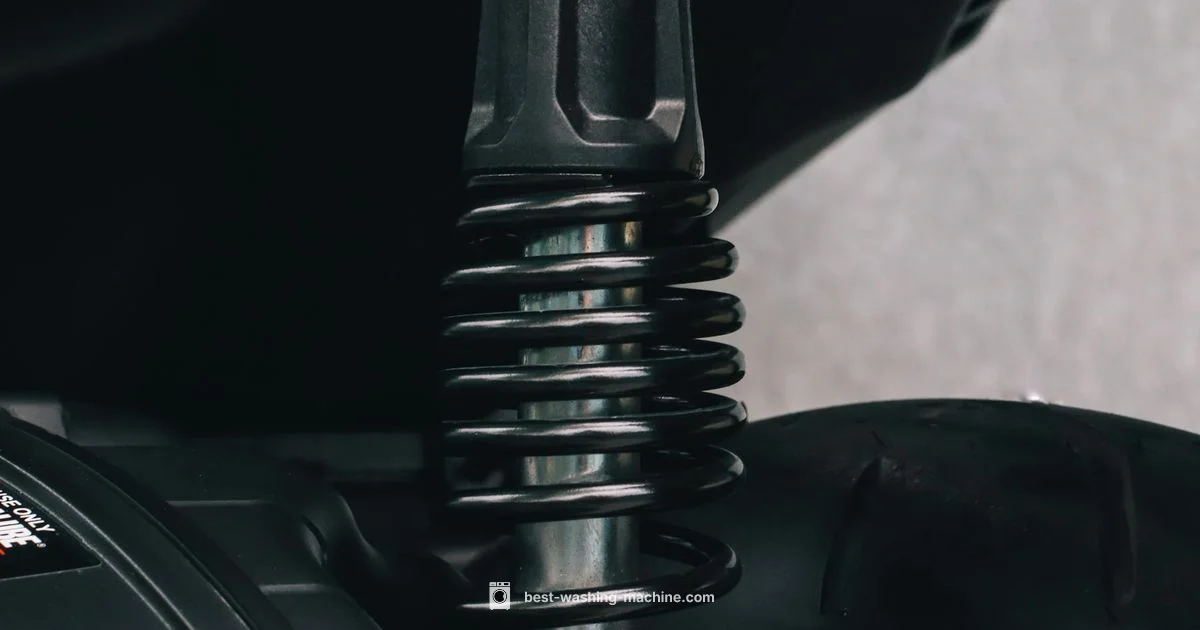

The suspension system in a washing machine is a compact, multi component assembly. The central pieces are the tub or basket, the suspension rods or arms, coil springs or elastomer cushions, and dampers or shock absorbers. The rods run from the tub to mounting brackets on the cabinet, helping to constrain vertical movement. Springs store energy during the downward motion of the tub, while dampers dissipate that energy as heat, smoothing the ride. In many front loading machines the rods connect at the top and bottom with bushings that reduce friction and wear. In top load models you may see a slightly different layout, but the same physics apply: control motion, damp vibration, and keep the drum aligned. The materials vary by model, but quiet operation typically comes from well-chosen stiffness in the rods and careful damper design. As you compare machines, look for robust mounting points and accessible service areas that indicate a durable suspension design.
How motion is controlled during wash and spin cycles
During a wash, the drum accelerates and decelerates with each agitation step. The suspension rods constrain that acceleration so the frame does not slam against the floor. At spin, the drum’s inertia pushes outward, and the suspension system must keep the tub centered while the outer drum spins at high speed. Springs temporarily store energy when the tub settles, and dampers convert that energy into heat, softening the motion. The result is steadier operation, less wear on seals, and less transfer of vibration to the cabinet. Because every load shifts weight distribution, the suspension system works continually to adjust. If you overload the washer, or use it on an unlevel floor, the rods and dampers take extra strain. In such cases you may hear thumping or feel more vibration. Understanding this dynamic helps you interpret noises and decide when a component may be nearing the end of its life.
Common materials and configurations
Manufacturers choose a handful of common approaches for the suspension. Some use metal rods or in some cases bars that run between the tub frame and the outer cabinet. Others use coil springs combined with hydraulic or elastomer dampers. The exact arrangement depends on the model and size, but the goals are the same: permit controlled vertical movement, damp the energy of rough action, and keep the tub stable during high speed spins. In high end machines, you may find more advanced dampers and stiffer rods tuned for different load ranges. In budget models, simpler springs and basic bushings are common. Regardless of design, the right stiffness and mounting quality matter for noise reduction and long term reliability.
Signs your suspension rods may need service
Are you hearing banging noises, loud thumps, or a noticeable wobble when the drum spins? Those can indicate worn suspension components, including rods, mounts, or dampers. If you see the tub leaning to one side or you notice the door gaskets rubbing against the drum, check the suspension for loose brackets or cracked bushings. Another clue is unusual vibration that changes with load size or fabric type. Finally, if the washer travels more than a small vertical distance during cycles, it may be time to inspect. Regular checks can catch wear before it becomes a costly repair.
How to inspect and perform safe maintenance
Start by unplugging the unit and moving it to a clear workspace. Access typically involves removing a service panel or back plate. Visually inspect the suspension rods for bending, rust, or looseness at mounting points. Check the springs or elastomer cushions for cracks or loss of stiffness. If a mounting bracket is bent or a rod wobbles freely, replacement is usually required. Tighten mounting screws to manufacturer torque recommendations and verify the tub remains centered. For most homeowners, routine maintenance means listening for changes in sound and vibration and addressing loose parts promptly rather than attempting major repairs. If you are uncertain, contact a trained technician or your brand’s service line.

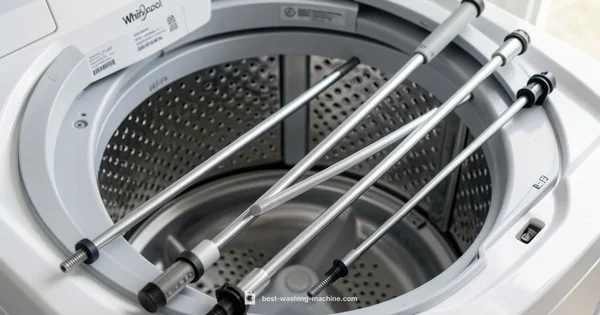

Replacing suspension rods and related components
Replacing suspension rods or related parts should follow the manufacturer’s service manual. Confirm compatibility with your model using the serial number and parts list. Use correct fasteners and torque values, and replace bushings or dampers if they show signs of wear. After installation, run a gentle test cycle with a light load to verify the tub remains balanced and the noise level is acceptable. Keep in mind that suspension components are sometimes sold as part of a kit that includes rods, dampers, and mounts, simplifying the replacement process. If in doubt, hire a professional to avoid misalignment, which can cause further damage.
Practical considerations when buying a washer with good suspension
When shopping for a new washer, look for models that emphasize a sturdy suspension system, with clearly labeled dampers and accessible service points. A design that allows easy replacement of rods and mounts can extend the life of the appliance. Read reviews that mention quiet operation, minimal vibration on typical loads, and straightforward maintenance guidance. While price matters, the long term cost of ownership often hinges on how well the suspension design handles everyday use.
FAQ
What are suspension rods in a washing machine?
Suspension rods are components that help hold the drum steady by connecting it to the cabinet and working with springs and dampers to control vertical movement. They contribute to stability, reduce vibration, and protect seals and bearings over time.
Suspension rods stabilize the drum by linking it to the frame and working with springs and dampers to reduce movement and noise.
Do suspension rods wear out over time?
Yes, they can wear with use. Worn rods may cause louder noises, more vibration, or a wobbling drum. Regular checks help catch wear before it leads to bigger repairs.
Yes, suspension rods can wear over time, causing noise and vibration. Regular checks help prevent bigger repairs.
Can I replace suspension rods myself?
Replacement can be tackled by a capable DIYer who follows the manufacturer’s manual and uses the correct parts. For uncertain cases, hiring a technician is safer.
It can be DIY for some models if you follow the manual and use proper parts, but consider a technician for complex setups.
Do suspension rods affect energy efficiency?
Yes. A stable, well damped drum reduces misalignment and wasted energy, which helps the washer run more smoothly and use energy more efficiently over time.
A good suspension reduces energy waste by keeping the drum stable and minimizing shake.
How long do suspension rods last?
Longevity depends on model, load, and usage. There is no fixed lifespan, but regular inspection and maintenance can extend service life vastly.
There is no fixed lifespan; longevity depends on usage, but regular checks help extend it.
The Essentials
- Inspect mounting points and bushings for wear
- Vibration and loud noises signal possible rod wear
- Follow manufacturer torque values during replacement
- Regular maintenance extends drum life
- Choose washers with accessible suspension components when buying
