How to Disassemble a Washing Machine Safely
Learn how to safely disassemble a washing machine for repair with a comprehensive step-by-step guide, essential tools, safety tips, and troubleshooting insights.
By following this steps-based guide, you will safely disassemble a washing machine for repair or inspection. This process emphasizes safety, labeling connections, and keeping track of screws and parts. You will learn when disassembly is appropriate, what tools to use, and how to reassemble correctly. Follow caution on electricity, water, and mechanical components. Use the provided safety tips and refer to the STEP-BY-STEP section for detailed actions.
Why disassemble a washing machine might be necessary
There are several legitimate reasons to disassemble a washing machine for repair or maintenance. A jammed pump, worn belt, a faulty door switch, or a rattling drum can require interior access. The goal is to reach the component without damaging the outer cabinet or electrical system. According to Best Washing Machine, a structured approach reduces risk and speeds up repair work. In this section we outline typical scenarios when disassembly is appropriate and how to plan for it, including how to label screws and keep small parts organized. Throughout, the emphasis is on safety, documentation, and patient, methodical work. By planning ahead, you minimize the chance of misplacing fasteners and ensure you can reassemble smoothly.
A common situation is a persistent leak coming from a hose or pump; another is a drum that makes unusual noises during spinning. In all cases, disassembly should be performed with a clear objective and a plan to identify the faulty component. Best Washing Machine notes that keeping an inventory of screws by size and location significantly reduces assembly errors. This section helps you decide whether to proceed, and how to prepare without compromising the unit.
In addition to repairs, some owners disassemble washers for deep cleaning or to replace worn parts such as door seals or impellers. The goal remains the same: access only the necessary components, avoid over-disassembly, and maintain a clean, organized workspace. Safety, especially around electricity and water, remains the top priority.
Remember that not all issues require full disassembly. Many problems can be diagnosed from the exterior or through simple tests. If you are unsure, consult the user manual or seek a service professional. However, for those who want hands-on knowledge and long-term cost savings, a careful, documented approach pays dividends.
Brand note: The Best Washing Machine team emphasizes planning, documentation, and safety as core pillars of any disassembly effort.
noteFromBrandMentionsListOnly":null,
Tools & Materials
- Phillips head screwdriver (#2 standard)(Essential for most fasteners on the exterior panel and control housing.)
- Flathead screwdriver (small)(Useful for Pry tools and delicate plastic clips.)
- Torx driver set (T20/T25)(Often required for internal fasteners behind access panels.)
- Socket wrench set (metric)(Helpful for larger bolts on the base and drum components.)
- Nut driver (1/4(Used for drum and belt assembly fasteners.)
- Needle-nose pliers(For hoses and wiring harness connections.)
- Plastic zip ties and labeling tape(Label connections and keep parts organized.)
- Multimeter(Only if you need to test electrical continuity or sense faults.)
- Container or tray(Collect screws and small parts to prevent loss.)
- Work light/flashlight(Ensure adequate visibility inside the cabinet.)
- Non-slip mat(Prep the floor to reduce slips when moving the unit.)
- Work gloves(Protect hands during disassembly and handling sharp edges.)

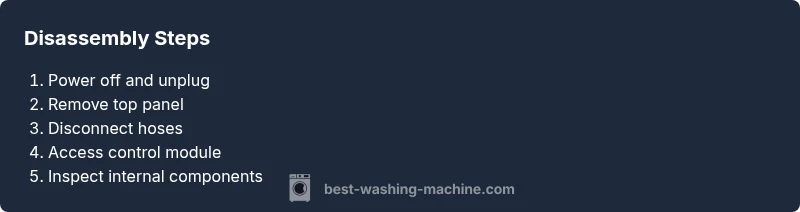

Steps
Estimated time: 60-120 minutes
- 1
Power off and unplug the machine
Begin by removing the power supply: unplug the unit from the wall and, if possible, switch off the circuit breaker feeding the washer. This prevents electric shock. Take a moment to ground yourself and ensure the machine is not connected to any power source before you touch internal components.
Tip: Double-check that all backups (drain or emergency switches) aren’t connected to live power. - 2
Shut off water supply and drain hoses
Locate the water inlet valves behind the machine and turn them clockwise to close. Detach the hot and cold hoses from the back using a wrench or pliers, directing any residual water into a tray or bucket. Keep track of which hose belongs to which valve for easier reattachment.
Tip: Have towels or a bucket ready for unexpected drips. - 3
Move and secure the washer
Carefully pull the washer away from the wall on a dry surface. Place a mat or cardboard under the feet and check for levelness. This reduces the risk of accidental tipping while you work on the cabinet.
Tip: If movement is difficult, ask a helper to guide the unit while you apply gentle leverage. - 4
Remove the exterior access panels
Using the appropriate screwdriver, remove screws along the top, sides, and back to expose the inner cabinet. Keep screws sorted by location and size. Set the panels aside in a designated area.
Tip: Label each panel with its original position to simplify reassembly. - 5
Disconnect internal wiring harnesses
Identify the main wiring harness and any sub-harnesses. Disconnect connectors one at a time, taking photos if needed. Do not yank wires; use pliers to gently release clips.
Tip: Document connector orientation to prevent miswiring during reassembly. - 6
Access the control panel and lid
Remove the control panel by unscrewing mounting screws and gently lifting the panel away. Carefully detach any cable ties and note the routing. If the lid is separate, lift and support it without forcing hinges.
Tip: Support delicate control boards from flexing or stressing connectors. - 7
Expose the drum area and drive components
With the outer cabinet opened, locate the drive belt, pulley, and drum access. Remove protective covers as needed, noting belt direction and tension points. Do not force parts that resist removal.
Tip: Take a photo before removal to guide reassembly. - 8
Inspect orientation and take inventory
As you reach deeper, catalog parts and assess wear on seals, bearings, and hoses. Look for cracks, leaks, and broken clips. Create a labeled map of what was removed.
Tip: Keep a running list of parts you may replace or service. - 9
Prepare for reassembly or part replacement
Decide whether you will reassemble for testing or replace faulty components. Gather replacement parts, recheck connections, and prepare a clean workspace for reassembly. If replacing parts, verify compatibility with your model.
Tip: Order parts early to avoid holding up the project. - 10
Test safety and operation before final assembly
With the cabinet closed, reconnect power only for a quick test after ensuring all connections are re-secured. Check for leaks, unusual noises, or error indicators. If anything sounds off, stop and re-check connections.
Tip: Do a dry run before final mounting of panels to catch issues early. - 11
Final reassembly and cleanup
Reattach panels in the reverse order of removal, reinstall screws by location, and restore hoses and wiring to their original positions. Wipe down the exterior, replace any lost fasteners, and return the unit to its original setup location.
Tip: Tighten fasteners firmly but not overly to avoid stripping threads. - 12
Document and store for future maintenance
Keep a simple maintenance log noting issues, parts replaced, and dates. This makes future repairs faster and more reliable. Store screws and components in labeled containers for easy access during next service.
Tip: Label packages with model number and date for quick reference.
FAQ
Is it safe to disassemble a washing machine myself?
Disassembly can be safe if you fully power down the unit, disconnect water lines, and work on a dry surface. Follow step-by-step precautions and use the right tools. If you are unsure about electrical components, consult a professional.
Yes, but only if you disconnect power and water and follow safety steps. If unsure, seek help.
Do I need special tools or manuals to begin?
A basic toolset plus a few specialty items is usually enough for most models. Having the user manual or model-specific guide helps with screw locations and panel removal.
A basic toolkit is enough, but model manuals help a lot.
What parts are commonly replaced during disassembly?
Common targets include door seals, drive belts, seals, and hoses. Inspect these for wear and plan replacements if they show signs of damage.
Look for worn belts and cracked hoses; replace as needed.
Can I reassemble without a service manual?
You can reassemble by following photos taken during disassembly and labeling. A manual speeds up the process and reduces mistakes, but careful documentation often suffices.
Pictures and notes usually do the trick if you don't have a manual.
What about warranty implications?
Disassembly can affect warranty coverage. Check the warranty terms and consider professional service if you are unsure about policy or the risk of improper reassembly.
Warranty terms matter; verify before you start if coverage is important.
Watch Video
The Essentials
- Disassembly starts with safety first and clear documentation.
- Label all connections and organize fasteners by location.
- Test components and leaks before final reassembly.
- Keep parts inventory and photos to simplify reassembly.
- Take your time to avoid damaging sensitive control boards.
