How to plumb a washing machine drain safely and correctly
Learn how to plumb a washing machine drain safely with a standpipe, trap, and vent. This guide covers parts, measurements, testing, and common mistakes to avoid for a leak-free, code-compliant setup.
You’ll learn how to plumb a washing machine drain safely and to code, installing a standpipe, trap, and proper hose connection. This guide covers required components, typical heights, venting considerations, and a tested step-by-step approach. You’ll also learn common mistakes to avoid and how to verify the installation with a leak test and a dye test if needed.
Why proper plumb washing machine drain matters
Plumbing a washing machine drain correctly is essential to prevent floods, backups, and costly water damage. A poorly configured drain can siphon sewer gas back into the home, cause standing water, and invite mold growth. According to Best Washing Machine analysis, households that invest in a purpose-built standpipe and trap with proper venting report fewer leaks and service calls in the first year. The goal is to create a dedicated channel for used laundry water that remains isolated from other drains, while allowing air to vent and prevent siphoning. When done right, the system handles typical loads from everyday laundry and emergencies during high-demand cycles without overflowing. The core idea is simple: a standpipe above the washer outlet, a trap to prevent backflow, and a correct hose connection to the standpipe. This foundation reduces odor transmission, protects floors, and makes future maintenance easier. In short, a well-planned drain keeps your laundry space safe, dry, and compliant with local codes.
Core components and how they work
A properly plumbed washing machine drain relies on four main components: a standpipe, a P-trap, venting, and the washer’s discharge hose connected with an air gap or proper anti-siphon device. The standpipe provides a dedicated vertical path for discharged water; the trap prevents sewer gases from entering the living space; venting allows air to escape to avoid siphoning; and the hose connection ensures water enters the standpipe without splashing back. When installed correctly, these parts work together to manage typical loads and prevent backflow during high-drain cycles. Always ensure the chosen materials are rated for waste water and compatible with your home plumbing, and verify that all joints are sealed to prevent leaks.
Standpipe height, trap type, and venting basics
Standpipe height is a critical parameter for effective drainage. A typical standpipe should extend above the washer outlet and terminate at a height that aligns with your local code; commonly this falls in an 18-30 inch range above the floor. The trap (P-trap) must be installed to prevent sewer gases from entering the home, and it should be properly sized for your piping. Venting is required in many jurisdictions to prevent siphoning; if your setup lacks a vent, you may need an air admittance valve or an appropriate vented connection. Always check local codes before finalizing dimensions, especially if you live in a multi-unit building where stricter rules apply. By following these guidelines, you minimize backflow risk and maximize reliability.
Materials, tools, and safety gear
Before you begin, assemble the necessary components: standpipe, trap, trap adapter, pipe and fittings, drain hose extension or adapter, primer and solvent cement (or appropriate adhesive for metal), silicone sealant, Teflon tape, and a venting option if required. Essential tools include an adjustable wrench, screwdriver, hacksaw or pipe cutter, measuring tape, marker, level, and a bucket for catching spills. Wear eye protection and gloves, and keep the work area dry to prevent slips. Having a clean workspace helps you spot misaligned joints early and reduces the chance of leaks after installation.
Common installation patterns and misconfigurations
Two common patterns exist: a dedicated standpipe connected to a nearby trap that drains directly into the building drain, or a standpipe integrated with a laundry tub setup. Misconfigurations often involve an incorrect standpipe height, an unvented or poorly vented line, or a loose, leaky joint. Another frequent error is using a flexible hose without an air gap, which can lead to backflow and contamination. Ensure the drain hose is secured and that slope and alignment avoid kinking. Finally, avoid connecting the washer drain directly into a sink or floor drain without an appropriate standpipe and trap, as this increases backflow risk.
Testing, leaks, and maintenance tips
After assembly, test the system with a controlled water flow to confirm there are no leaks and that water drains smoothly into the standpipe. Look for wobbly joints, seepage at connections, or dampness around the trap and pipe joints. A dye test can help reveal hidden leaks by tracing the color through the system. Schedule regular inspections, especially after major plumbing work or if you notice unusual water sounds or slow draining. A well-maintained drain system reduces the risk of floods and odors and makes future repairs easier for homeowners and renters alike.
Tools & Materials
- Standpipe(Height consistent with local code (typically 18-30 inches above floor))
- P-trap and trap adapter(Correct size for your pipe diameter)
- PVC pipe and fittings or metal equivalents(Choose appropriate schedule and compatibility)
- Drain hose extension or adapter(Ensure a secure connection to the standpipe)
- Primer and cement (PVC) or solvent-weld glue(For solvent-weld joints)
- Silicone sealant and Teflon tape(Seal joints and threads)
- Vent pipe or venting kit (if required by code)(Provide proper venting to prevent siphoning)
- Hacksaw or pipe cutter(Cut pipes to proper length)
- Adjustable wrench and screwdrivers(Tighten fittings securely)
- Measuring tape and level(Ensure proper alignment and height)
- Bucket, towels, and rags(Clean spills and catch water during install)
- Personal protective equipment (gloves, eye protection)(Safety first)

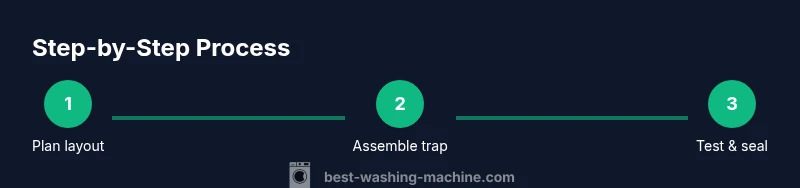

Steps
Estimated time: 60-90 minutes
- 1
Plan layout and measure heights
Choose a standpipe location that aligns with the washer outlet and minimizes bending. Measure the floor-to-standpipe height and verify vent availability. Mark cut lines on piping before making any changes.
Tip: Double-check local code requirements before finalizing height. - 2
Gather materials and tools
Collect all components in one place to avoid mid-project trips. Lay out pipe lengths and fittings according to your planned route.
Tip: Lay out parts in the order they will be installed to reduce confusion. - 3
Disconnect power and remove old connections
Unplug the washer and detach any existing hoses. Drain any residual water from lines into a bucket.
Tip: Keep a towel handy to absorb residual moisture. - 4
Install standpipe and trap assembly
Assemble the standpipe with the trap at the correct location. Use primer and cement or appropriate adhesive to secure joints, ensuring a watertight seal.
Tip: Check for a rigid, level standpipe before securing. - 5
Install venting if required by code
Add a vent or air-admittance valve if your jurisdiction requires it. Ensure vent path is unobstructed and properly sized.
Tip: Avoid creating a horizontal vent run that slows drainage. - 6
Connect drain hose to standpipe with air gap
Attach the washer drain hose to the standpipe with an approved air gap or anti-siphon device. Secure connections to prevent leaks and ensure the hose sits above the trap’s water seal.
Tip: Do not kink the hose and avoid submerging it in standing water. - 7
Test for leaks and proper drainage
Run water through the system and observe every joint for leaks. If any seepage is detected, tighten or reseal joints and re-test.
Tip: Add dye or a visible test to easily spot leaks. - 8
Seal joints and finalize installation
Apply silicone or appropriate sealant at exterior joints. Clean up tools and document code references for future maintenance.
Tip: Keep spare parts on hand for future repairs.
FAQ
Do I always need a vent for a washing machine drain?
Venting is often required by code to prevent siphoning, especially in longer runs or when the standpipe is subject to high water flow. If you’re unsure, consult local plumbing codes or a licensed professional.
Vent requirements vary by location, but codes often require a vent to prevent siphoning in washing machine drains.
What is the proper standpipe height for a washer drain?
A typical standpipe height ranges from about 18 to 30 inches above the floor, depending on local codes. Verify with your local building department before cutting any pipe.
Standpipe height usually falls between 18 and 30 inches; check local codes for exact requirements.
Can I reuse existing pipes for a new washer drain?
Reuse is possible if the current piping has the correct diameter, slope, and a proper trap. Inspect for cracks or blockages and ensure the configuration meets code requirements.
You can reuse pipes if they’re in good condition and meet code, otherwise replace with properly sized components.
What are common signs my washer drain is not plumbed correctly?
Backups, gurgling sounds, foul odors, or water around the standpipe indicate drainage or venting problems. Address leaks promptly to prevent mold and water damage.
Backups and odors are common indicators of drainage or venting issues.
Is an air gap required for the washer drain?
An air gap is a common method to prevent backflow, but requirements vary by code. Use an approved air-gap device if your code calls for it.
Air gaps prevent backflow where required; follow local codes.
What should I do if a joint leaks after testing?
Shut off water, dry the area, re-tighten fittings or reseal with appropriate sealant, then retest. Persistent leaks may require replacing faulty components.
If a joint leaks, re-tighten or reseal and test again; replace faulty parts if needed.
Watch Video
The Essentials
- Plan the layout before cutting any pipe.
- Use a dedicated standpipe and trap to prevent backflow.
- Venting is essential in many codes—check local rules.
- Test thoroughly with water and dye to confirm leaks are absent.
- Keep maintenance documentation for future repairs.
