Where Is the Washing Machine Drain Pump? A Practical Guide

Understanding the Drain Pump: What It Does

In any residential washing machine, the drain pump is a small electric motor-driven impeller that moves water from the tub into the drain hose. Its job is simple but essential: extract used water quickly and safely so the next rinse or spin cycle can begin. If a pump fails, you might see standing water after a cycle, slow draining, or an error code indicating a drainage problem. According to Best Washing Machine, the drain pump is a wear item that endures hundreds of cycles per year, and debris or lint can reduce its efficiency over time.

The pump is typically routed to the tub via a short hose and a one-way valve. In some models the pump includes a check valve to prevent backflow. Access points vary by design, but most installations keep the pump near the bottom of the cabinet, where gravity helps drainage. In addition to the pump motor, the impeller, housing, and inlet/outlet hoses can wear out, leading to clogs or leaks. Understanding these parts can help you diagnose issues quickly and decide whether a DIY fix or a professional repair is required.

Where is washing machine drain pump located?

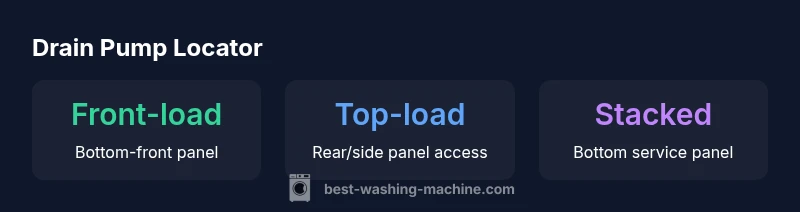

When you ask where is washing machine drain pump, the short answer is that location varies by model. In most front-loading machines, the pump sits behind the lower front panel or toe-kick area, connected to the drain hose. Some models provide access through a small service door in the front panel. For top-loading washers, the drain pump is typically located beneath the tub housing, often behind a rear access panel. Stacked machines may place the pump behind a service panel at the bottom front or back. Always consult the user manual for your specific model, but the general rule is: look for a small motor with a couple of hoses attached near the bottom of the cabinet.

To safely approach the task, unplug the washer and shut off the household water supply. Remove the front kick plate or service panel, then follow the drain hose from the tub to the pump body. The pump usually has an electrical connector and two hoses (inlet from the tub and outlet to the drain). If you see a clogged hose, a stuck impeller, or a cracked housing, those are common culprits beyond a faulty motor.

How to identify a faulty drain pump

Diagnosing a drain pump involves ruling out simpler issues first (clogged filters, kinked hoses, or blocked drain). If the washer fills but does not drain, or if you hear a loud humming without water movement, the pump or impeller may be blocked or worn. Start by inspecting the drain hose and pump inlet for hair, lint, or small objects that could jam the impeller. With the machine unplugged, you can try a gentle manual rotation of the impeller—if it resists or feels seized, the pump may need replacement.

Next, check the electrical side: ensure the pump motor is getting power when the control board signals a drain. A simple continuity test with a multimeter can help confirm motor health, though many DIY guides recommend replacing the entire pump assembly rather than attempting a motor-only repair. If the pump hums but doesn’t move water, the impeller may be jammed or the bearings may be worn. In professional diagnostics, a blocked inlet valve or faulty pressure switch can also mimic pump failures, so rule those out during testing.

Step-by-step: Locating the drain pump on common models

Follow these steps to locate the drain pump on typical washer designs:

1. Ensure the appliance is unplugged and water valves are shut off.
2. Move the machine slightly to access the bottom front panel (for front-load) or the rear service panel (for top-load).
3. Remove screws or clips holding the access panel, then gently peel it away to expose the inner cabinet.
4. Trace the drain hose from the tub toward the drain. The pump is a small motor with two hose connections and an electrical connector.
5. Reconnect hoses and power only after you confirm the pump is free of debris and spins when manually rotated.
6. If the pump is inaccessible or the replacement requires partial disassembly, consult a professional, especially for stacked machines where access is restricted.

Common pitfalls and quick fixes (DIY tips)

DIYers should avoid bypassing safety features or running water through the pump while it’s open. Common quick fixes include clearing clogs in the pump inlet screen, cleaning lint from the filter, and ensuring the drain hose is not kinked. Do not reuse a corroded or cracked hose, and never operate the washer with missing panels or exposed wiring. If the pump doesn’t respond after these checks, replacement is often more cost-effective than a repair, especially on older units.

When to replace vs repair and maintenance tips

Drain pumps wear with time; typical signs point toward replacement rather than extensive repair (burned motor windings, seized impeller, or cracked housing). Replacing a pump assembly is usually straightforward and cost-effective compared to replacing the entire washer. Regular maintenance helps extend life: clean lint filters, inspect drain hoses for cracks, and avoid overloading which increases pump load. For better reliability, run a monthly maintenance cycle that includes a quick drain-only test to ensure the path remains clear.
