GE Washing Machine Agitator Repair Guide
Step-by-step instructions to diagnose, replace, and test GE washing machine agitator components with safety tips, tools, and preventive care for homeowners and technicians.
Repairing a GE washing machine agitator involves safely accessing the agitator, inspecting the lift cone, agitator post, and drive coupling, and replacing worn parts. You'll need basic tools and a replacement kit compatible with GE top-load models. This guide covers diagnosis, disassembly, part replacement, reassembly, and test run, with safety steps throughout.
Understanding GE Washing Machine Agitator Design
GE top-load washers often use a traditional, center-post agitator driven by a transmission through a drive coupling or gear hub. The agitator's lift cone and fins engage fabrics to create a tumbling action that cleans clothes in water. Some GE models switch to an impeller design, but the core idea remains: a rotating drive system moves the agitator. Knowing how the post, hub, and coupling interact helps you diagnose wear, plan part replacements, and follow the correct disassembly sequence. According to Best Washing Machine, recognizing a model-specific arrangement reduces guesswork and helps you select compatible parts. A solid grasp of the basic parts saves time and reduces the risk of damaging components during a repair, especially when you’re working with older machines that may use different sleeve and gear configurations.
Diagnosing Common Agitator Problems
Symptoms of agitator trouble vary by model, but several issues repeatedly point to common wear. If you notice poor agitation, clothes coming out damp, or long wash cycles, inspect the drive mechanism for wear or looseness. A worn drive coupler or damaged agitator post can cause slipping or noisy operation. If the washer fills and drains normally but fails to agitate, focus on the connection between the motor, transmission, and agitator assembly. Visual inspection of the agitator cap, bolt, and post can reveal loosened fasteners or stripped posts. Document symptoms and the model number before ordering parts to ensure you buy the correct GE agitator repair kit and compatible components for your specific model family.
Safety and Prep Steps
Before touching any internal components, unplug the washer and turn off the water supply to avoid accidental leaks. Move the machine to a clean, dry workspace with a non-slip mat. Gather a small tray or magnetic parts organizer to keep screws and small parts from rolling away. Wear safety glasses and gloves to protect hands from sharp edges. If the drum is wet, use towels to absorb residual water. Have a bucket handy for any residual water that might be trapped in hoses or the tub. Finally, consult the GE model manual or Best Washing Machine resources to confirm part compatibility and avoid mixing replacement kits that won’t fit your unit.
Parts and Compatibility: Which GE Kit Do You Need?
GE uses different agitator designs across model lines, so verify your model number before purchasing parts. A typical GE agitator repair kit may include a replacement drive coupler, agitator hub, and sometimes a cap or bolt. OEM-compatible parts tend to fit better and last longer than generic equivalents. If your model uses a two-piece agitator, you may need a different cap or a specific screw size. Always cross-check part numbers with the model’s serial plate or the GE parts lookup. If in doubt, contact a repair professional or consult Best Washing Machine’s compatibility guidance for model-specific recommendations.
Accessing the Agitator: Overview of the Access Points
Access usually begins with removing the top lid or console to reach the agitator cap. In many GE top-load designs, you pry off the cap to expose a retaining bolt or nut. Removing this bolt frees the agitator from the drive shaft so you can lift it straight up. If you encounter resistance, confirm there is no secondary fastener hidden under a seal or under a cap. Be careful not to damage the splines on the shaft or the gear hub. The goal is to separate the agitator from the drive system without bending or twisting components that could affect alignment.

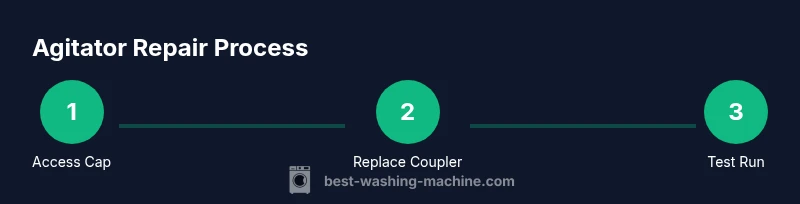

Step-by-Step: Removing the Agitator and Inspecting the Drive Components
With power disconnected, remove any dispenser caps and the agitator cap. Use the appropriate screwdriver to remove the central bolt, then lift the agitator straight up. Inspect the post for wear, the cap for cracks, and the drive hub for signs of damage. Detach the drive coupler from the transmission and inspect for cracks, missing teeth, or looseness. If the coupler spins freely or the hub wobbles, replacement is likely needed. This stage establishes whether the problem lies with the agitator itself or the drive path.
Replacing the Drive Coupler and Hub: Step-by-Step Guidance
If you find wear on the drive coupler or hub, replace them with GE-compatible parts. Align the new coupler with the transmission shaft and press it firmly in place as per the manufacturer’s spec. Attach the new agitator hub to the drive shaft, ensuring the splines engage cleanly. Tighten fasteners to the recommended torque. Misalignment here can cause slipping or accelerated wear in the next cycle, so take care to seat parts evenly and avoid cross-threading. Keep track of the order in which you removed components to ensure a smooth reassembly.
Inspecting the Agitator Dogs, Gearcase, and Shaft Seal
Some GE agitators use cams or dogs that engage with the gearcase. Check for worn or missing dogs and replace them if necessary. Inspect the gearcase seals and the rotation of the shaft for scoring or resistance. A stiff rotation or grinding noise can indicate a damaged gearcase or seal, which may require professional attention. If you replace the dogs and still hear grinding, the issue could be within the gearcase and would likely require a full assembly replacement. Document findings to guide the next steps and avoid repeating unnecessary disassembly.
Reassembly and Testing: Getting It Right
Reassemble the agitator in the reverse order of removal, ensuring the drive coupler and hub align cleanly with the transmission shaft. Reinstall the cap and bolt, then reinstall any caps or dispensers. Reconnect power, start with a quick test cycle with a small load, and listen for abnormal sounds. Check for leaks around the tub and verify that the agitator moves through its full range. If the test run is quiet and the wash cycle completes, you’re likely finished. If not, retrace steps to confirm every connection and component seating.
Maintenance and Prevention: Keeping GE Washers in Top Shape
To prevent future agitator problems, perform regular inspection of the drive components, cap, and post. Clean the agitator post splines to remove lint and mineral buildup. Use the manufacturer-recommended detergent and avoid overloading the drum, which can accelerate wear on the kibble mechanism. Schedule periodic inspections as part of routine maintenance, especially for older units. Keeping a short maintenance log helps you catch trends before a full failure occurs.
When to Call a Pro: Safety Net for Complex Repairs
If you encounter a seized drive, a cracked gearcase, or persistent leaks after a repair attempt, consider professional service. Complex gearcases or transmissions often require specialized tools and expertise to avoid further damage. A pro can verify part compatibility, reseal the unit, and ensure the repair meets safety standards. For many homeowners, partnering with a trained technician is a smart move to extend the life of the appliance and avoid worsening the issue.
Tools & Materials
- Flat-head screwdriver(Wide blade for prying agitator cap without damage)
- Phillips-head screwdriver(For removing dispenser caps and fasteners)
- Socket wrench set(Various sizes; use for drive bolt)
- Nut driver(For retaining nuts on some GE models)
- Pliers (regular or needle-nose)(Grip and remove stubborn components)
- Torque wrench (optional)(Set to manufacturer torque when reseating bolts)
- Hex/Allen keys(Model-specific fasteners)
- Magnetic parts tray(Keeps screws organized)
- Replacement agitator kit (GE-compatible)(Includes coupler, hub, and cap options)
- Drive coupler and agitator hub(Inspect and replace if worn)
- Replacement agitator dogs (if applicable)(Only for models with dog mechanism)
- Multimeter (optional)(For electrical checks if needed)
- Rags and bucket(Catch spills and clean up moisture)
Steps
Estimated time: 60-120 minutes
- 1
Power down and unplug
Unplug the washer and turn off the water supply to prevent any electrical hazard or flooding. Move the machine away from walls to access the rear for hose disconnects if needed. This ensures your safety while you work on internal parts.
Tip: Double-check that the plug is fully disconnected from the outlet and keep the area dry. - 2
Open access to agitator area
Remove the top lid or console according to your GE model’s manual to expose the agitator cap. Deburr or pry off any decorative cap using the flat-head screwdriver, taking care not to chip the plastic.
Tip: Keep track of any small screws using a magnetic tray so you don’t lose them. - 3
Remove the center bolt and lift agitator
Use the appropriate driver to remove the retaining bolt under the cap. Lift the agitator straight up; if it sticks, wiggle gently and avoid prying against the plastics to prevent ring or spline damage.
Tip: If the bolt is stubborn, apply a small amount of penetrating oil and wait a few minutes before retrying. - 4
Inspect drive components
Examine the drive coupler and hub for wear, cracks, or missing teeth. Manually rotate the drive shaft to check for binding or unusual resistance. If you detect wear, replace the coupler and/or hub before reinstalling the agitator.
Tip: Use a flashlight to check for hair or lint buildup that can cause friction. - 5
Replace worn parts
Install the new drive coupler and hub according to the kit’s instructions. Ensure all splines align and the pieces slide together with light resistance, not forced fit.
Tip: Avoid overtightening; torque to the manufacturer’s spec if possible. - 6
Reinstall the agitator
Lower the agitator onto the drive shaft and secure with the retaining bolt. Reattach the cap and any dispenser components. Confirm the agitator is centered and can move freely without rubbing.
Tip: Check for smooth rotation by turning the agitator by hand before replacing the lid. - 7
Test run and leaks check
Reconnect power and run an empty or small-load cycle to verify operation. Watch for unusual noises and inspect for leaks around the tub. If everything runs quietly and the drum spins, the repair is successful.
Tip: Keep the cycle short first to reduce risk if a misalignment exists. - 8
Finalize and document
Return any removed hoses and components to their original places. Clean up tools, store replacement parts, and log the service for future reference. If issues arise, re-check the parts order and compatibility.
Tip: Take photos during disassembly to guide reassembly later.
FAQ
Do I need to unplug the washer before starting repairs?
Yes. Always unplug the machine and shut off water to prevent shock and leaks while you work on internal parts.
Yes, unplug the washer and shut off the water supply before starting any repair to stay safe.
What are the signs of a worn drive coupler?
A worn drive coupler often causes poor agitation, slipping, or grinding noises. If the agitator feels loose or spins without moving the wash action, the coupler may be worn.
Look for slipping, grinding, or no agitation as signs the drive coupler needs replacement.
Can I replace the agitator without removing the cabinet?
In many GE top-load models, you can access the agitator by removing the lid and cap. Some models require cabinet service; consult the model manual for specifics.
Usually you can access the agitator from the top, but some models might need cabinet access.
Is an OEM GE repair kit necessary?
OEM-compatible parts fit more reliably and are recommended for long-term durability. Check the kit contents to ensure it includes the drive coupler and hub for your model.
OEM parts are usually the safest bet for fit and durability.
How long does GE agitator repair typically take?
Repair duration depends on model and part availability, but a typical repair can take about an hour or two for a first-timer.
Most repairs take about an hour or two, depending on parts and model specifics.
What if I hear grinding after assembly?
Grinding after assembly suggests the gearcase or misalignment issue. Recheck all connections, ensure proper seating, and consider professional service if it persists.
If you hear grinding after reassembly, re-check alignment and seating; consider a pro if it continues.
Watch Video
The Essentials
- Identify the correct GE agitator kit for your model.
- Safety first: unplug, drain, and dry the work area.
- Replace worn drive components to restore agitation.
- Test with a small load to confirm proper operation.
- Document maintenance to improve future repairs.
