Maytag Washing Machine Belt Replacement: Step-by-Step Guide
A practical, model-agnostic guide to replacing the drive belt on your Maytag washing machine. Tools, steps, and safety tips to restore performance and silence, with model checks and maintenance guidance.
This quick guide helps you perform maytag washing machine belt replacement safely and effectively. You’ll verify symptoms, gather the right tools, and follow a step-by-step sequence to avoid common mistakes. The process varies by model, but most users complete it in about 30–60 minutes depending on model and experience. Keeping the belt aligned prevents rapid wear and noisy operation.
Understanding the belt system in Maytag washers
Most Maytag washers use a drive belt to transfer motor power to the drum. The belt's wear pattern depends on use, load, and maintenance. When the belt loosens, you may hear squealing, notice slower drum rotation, or experience erratic agitation. This section explains belt types (single V-belt vs. multiple idler configurations), routing basics, and why a replacement is sometimes the only fix for noisy operation. Across models, the core principle remains the same: a worn belt reduces efficiency and can cause misalignment when the drum spins. If you are about to attempt maytag washing machine belt replacement, understanding the belt's path will help you diagnose the issue more quickly and avoid unnecessary disassembly. Regular inspection of the belt’s surface and edges can help you catch wear before it becomes a bigger problem.
When to consider belt replacement
A belt is a wear item that can degrade without obvious clues until it fails. If you notice a high-pitched squeal during startup, a burning rubber smell, or the drum stops and restarts mid-cycle, the belt could be worn or cracked. Visible cracks, glazing, or missing segments indicate replacement. If the washer spins slowly, makes thumping noises, or walks during spin, inspect the belt for slack or damage. Some symptoms may mimic motor problems or pulley wear, so use a systematic check before purchasing a replacement belt. For maytag models, refer to the service diagram in your manual to confirm belt routing before ordering a replacement.
Tools and safety basics
Before you start, unplug the washer and disconnect it from the wall outlet. Gather a flat-head screwdriver, Phillips screwdriver, a socket wrench, needle-nose pliers, and a replacement belt compatible with your Maytag model. Work on a clean, dry surface and keep small parts in labeled containers. Safety glasses protect against sharp edges and debris. Avoid forcing panels—many units use plastic clips or screws that can break if pried aggressively. Safety tip: never service a washing machine while plugged in or near water sources. If you’re uncertain about model compatibility, check the belt routing diagram in your user manual.
How belt replacement affects performance and longevity
A correctly installed belt improves motor torque transfer and reduces belt slippage. After replacement, you should notice better spin speed, quieter operation, and more consistent agitation. Belt tension should be firm but not overly tight; an overly tight belt puts stress on bearings, while a loose belt slips and wears unevenly. For maytag washing machine belt replacement, ensure the belt sits fully in grooves and that the pulleys rotate smoothly by hand before powering the unit. A well-timed replacement not only restores performance but can extend the overall life of the drive system.
Common mistakes to avoid
Rushing the job can lead to misrouting or broken clips. Not supporting the idler pulley during belt removal can cause it to spring back and become damaged. Reusing an old belt with cracks is unsafe; always replace with a belt that matches your model. Failing to verify model compatibility or not taking a clear photo of belt routing can lead to wrong belt type or routing. Finally, neglecting to test run the washer after replacement may hide a wrong belt path or tension issue.
Maintaining belt health after replacement
Keep the belt clean and dry, avoiding oil or detergent residue that can degrade rubber. Regularly inspect for signs of wear—cracks, glazing, or missing ribs. Balance loads to minimize belt stress and prevent sudden starts. Establish a simple maintenance habit: visually inspect the belt every 3–6 months and listen for changes in operation sounds. This proactive approach helps extend belt life and reduces unexpected downtime.
Tools & Materials
- Owner’s manual and model number(Verify belt type and routing diagram for your specific Maytag model)
- Flat-head screwdriver(Pry panels without cracking plastic)
- Phillips screwdriver(Remove screws on access panels)
- Socket wrench set (metric/SAE)(Remove pulleys and fasteners safely)
- Needle-nose pliers(Grip and maneuver the belt during removal)
- Replacement belt for your Maytag model(Check compatibility via the model number and part number)

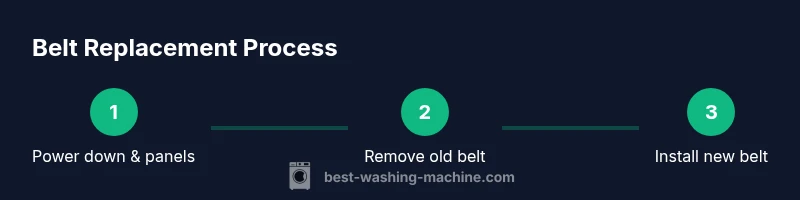

Steps
Estimated time: 45-75 minutes
- 1
Power down and safety prep
Unplug the washer from the wall outlet and tap the power source to ensure there is no residual current. Move the unit away from walls to access the back or side panels. Verify you have a dry work area and take a quick photo of the belt routing before removal to aid reassembly.
Tip: Having a camera saves you from guessing belt path during reassembly. - 2
Access the belt area
Remove the access panels as described in your model manual. Keep screws organized in a labeled container. If your model is front-load, you may need to drain residual water from the drum first according to the manual.
Tip: Use a magnet tray or organizer for screws and small parts. - 3
Remove the old belt
Loosen the tensioner pulley and slide the belt off the motor pulley and idler pulley. Inspect pulleys and grooves for wear or damage. If the belt shows cracks or glazing, replace both belt and inspect pulleys.
Tip: Note belt routing as you remove it to avoid misrouting later. - 4
Install the new belt and route correctly
Position the new belt along the correct grooves, following the routing diagram. Rotate pulleys by hand to ensure smooth seating and absence of binding. Double-check tension by pressing lightly on the belt mid-span.
Tip: Avoid twisting or twisting the belt during installation. - 5
Reassemble and reconnect
Reattach any panels, screws, and wires you removed. Reconnect power and ensure the console displays normally. Do a quick test by running a short cycle with no load to observe belt tracking and noise levels.
Tip: Keep the work area clear and ready for a test run. - 6
Test run and final checks
Run a full cycle without clothes initially. Listen for abnormal noises and watch the drum’s spin for even motion. If you notice abnormal behavior, power down and re-check belt tension and routing.
Tip: If issues persist, consult a professional or verify model-specific belt part numbers.
FAQ
Can I replace the belt myself on any Maytag washer?
In many cases, yes, but some models use different belt types or layouts. Always consult your manual and confirm belt routing before purchasing parts.
In many cases you can DIY belt replacement, but check your model’s belt type and routing in the manual first.
How do I know if the belt is the problem or a pulley issue?
Look for cracks or glazing on the belt and check for pulley wear. If the drum spins freely by hand but stalls under power, the belt or pulleys may be culprit. Use a systematic inspection to differentiate between belt wear and pulley damage.
Check the belt for cracking or glazing and inspect pulleys. If the drum spins freely by hand but stalls under power, belts or pulleys may be at fault.
Do belts wear faster with heavy loads?
Yes. Heavy loads increase belt tension and cycling demand, which can accelerate wear. Regularly inspecting and replacing worn belts is part of good maintenance.
Yes, heavy loads can speed up belt wear. Regular checks help catch wear early.
What if I can’t find a belt for my exact Maytag model?
Consult your model number with the supplier’s compatibility chart. If a direct match isn’t available, a technician may help source a compatible belt and verify routing.
If you can’t find an exact belt, check a compatibility chart or ask a technician to verify a suitable substitute.
Will replacing the belt affect my warranty?
Unauthorized repair can impact warranty in some cases. Check the warranty terms and consider professional service if your warranty is active or if you’re unsure about the model’s requirements.
Warranties vary—check the terms or contact the manufacturer before DIY repairs if the warranty is active.
Are some Maytag washers belt-free or direct-drive?
Some Maytag models may use direct-drive configurations, but many still rely on belts. Verify your unit’s drive system before purchasing parts.
Some Maytag models use direct-drive, but many do have belts—check your model to be sure.
Watch Video
The Essentials
- Unplug the machine before starting any work.
- Confirm belt compatibility with your Maytag model.
- Route and seat the new belt correctly for optimal performance.
- Test the washer with no load to verify smooth operation.
