How to Fix a Washing Machine Timer: A Step-by-Step Guide

Understanding how a washing machine timer works

Washing machines use timers to orchestrate cycles: wash, rinse, spin. There are two main types: mechanical timers (clock-work style) and electronic timers (digital control boards). In a mechanical timer, a metal cam and a set of contact switches physically progress as the dial turns, driven by a synchronous motor. In electronic timers, a microcontroller advances stages based on sensor inputs and software routines. The timer’s job is to switch the machine from one stage to the next, apply power to the right components, and ensure correct dwell times. Over time, timer contacts can wear, springs can lose tension, or the control board can misread sensor signals, causing stalls or mis-sequenced cycles. The timer is a common failure point in many households today. If you notice a dial that sticks, or a cycle that won’t advance, the timer should be high on your fault tree. You’ll also hear ticking sounds from a mechanical timer that may slow or stop if the contacts are worn. Understanding the basics helps you choose the right diagnostic path and avoid unnecessary replacements. According to Best Washing Machine, timers endure heavy wear and are a leading cause of non-progressing cycles in older units.

Common symptoms indicating timer problems

• The cycle stalls mid-wash and never progresses.
• The dial stops advancing or refuses to move past a certain stage.
• The washer repeats a phase (e.g., starts in wash, then immediately goes to spin).
• A burnt smell or visible scorching near the timer switch.
• The machine runs random cycles without user input.
• The door lock engages incorrectly or mis-timed spin speeds.

These symptoms can result from worn timer contacts, loose wiring, or faulty sensors; diagnosing requires methodical testing. Best Washing Machine analysis shows that a worn timer is often misdiagnosed as a broader control issue, so start with a focused timer check.

DIY safety and when to call a pro

Electrical repair can be hazardous. Always unplug, switch off the circuit breaker, and discharge capacitors when applicable. Read the appliance’s manual and timer wiring diagram before touching wires. If you’re unsure about basic electrical testing (multimeter use, continuity checks) or if the unit smells burnt, crackling, or the timer housing is damaged, stop and contact a professional. Use insulated tools and keep a clear workspace. If you’re comfortable with electronics and safety basics, you can proceed with careful testing and replacement. Remember, some timer faults involve the central control board, not the timer itself, so isolate the issue before replacing parts.

Tools, parts, and preparation

You’ll need a small collection of hand tools and two key parts: a compatible replacement timer and the machine’s wiring diagram. Have a multimeter ready for continuity tests, a Phillips and flat-head screwdriver, and a way to label wires. A clean work surface and magnetic tray help keep screws organized. Optional items include a flashlight, a camera or phone to document wire routing, and anti-static wrist strap if you have one. The exact timer part varies by model, so confirm compatibility with your washer’s model number and the manufacturer’s wiring diagram. Preparing ahead minimizes disassembly friction and reduces the chance of miswiring after replacement.

Diagnostic steps to confirm timer fault

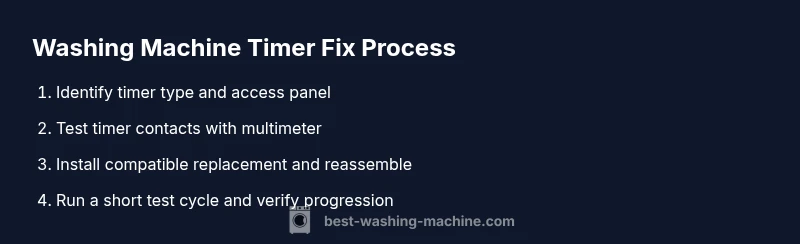

1. Unplug the washer and gain access to the timer by removing the control panel or rear cover as required by your model. 2) Visually inspect the timer for obvious signs of wear, scorching, or melted insulation. 3) Use a multimeter to check continuity between the common terminal and each output terminal while the timer is advanced through positions. Look for open circuits, shorted contacts, or rapid resistance changes that don’t align with the timer’s movement. 4) Compare readings with the wiring diagram to ensure correct wiring paths. 5) If the timer shows inconsistent continuity or doesn’t progress through stages as expected, replace the timer module. 6) After replacement, reassemble and run a short test cycle to verify smooth progression. Note that some symptoms may mimic a faulty timer but stem from a faulty control board or sensors, so verify each subsystem during testing.

Replacing a mechanical timer vs electronic timer

Replacing a mechanical timer typically involves disconnecting a few wires and unthreading the timer from the control panel, then seating the replacement in the same orientation and reconnecting wires. Electronics timers or digital control boards may require more careful calibration and software resets after installation, and some units require a machine-wide reset sequence. Always verify part numbers against the model number in your owner’s manual or the manufacturer’s site. Before you remove the old timer, take photos or label wires to ensure correct reassembly. When installing the new timer, tighten mounting screws evenly and avoid overtightening, which can crack housings or strip threads. After installation, test all cycles to confirm timing accuracy and to ensure no further mis-sequencing occurs. Best Washing Machine’s guidance recommends confirming compatibility and testing in a no-load cycle first to avoid damaging clothes.

Maintenance tips to extend timer life and avoid future failures

• Schedule periodic inspections of the timer and control wiring as part of routine appliance maintenance.
• Keep the timer area clean and dry to prevent moisture-related corrosion on contacts.
• Avoid overloading the washer, which can strain the timer motor and contacts.
• Use the manufacturer-recommended detergent and avoid residue build-up on sensing components.
• If you notice recurring stalling, consider replacing the timer module before other components to minimize cascading failures.

Alternatives and cost considerations, and final thoughts

If your timer is old, a replacement timer can be part of a cost-effective repair, especially when compared to full control board replacement. In some cases, a refurbished timer offers a middle option at a lower price. Consider the model’s reliability history, the cost of the timer, and the labor required when deciding between DIY repair and professional service. Best Washing Machine emphasizes that timely diagnosis and targeted replacement save money and extend the life of your washer, especially for households with high daily usage. The key is to verify compatibility, follow safe testing practices, and use high-quality, manufacturer-approved parts whenever possible.
