Mastering a washing machine transmission repair can save you from costly service calls and extend the life of your appliance. In this guide, you’ll learn how to identify symptoms, assess whether to repair or replace, and follow a safe, step-by-step approach. By the end, you’ll know when to DIY and when to call a professional for a reliable fix.
Understanding the Transmission in a Washing Machine
The transmission, sometimes called the gearbox or drive assembly, is the heart of how your washer converts motor power into controlled drum movement for wash and spin cycles. In the context of washing machine transmission repair, most failures involve worn gears, seals, bearings, or misalignment within the gear train. By learning the basics of the transmission, you can better identify symptoms and communicate with technicians. Expect that modern direct-drive units differ from belt-driven machines, but both rely on precise alignment, lubrication, and secure fasteners. Regular inspection of hoses, mounting, and the outer housing helps you spot wear before it becomes a breakdown. Best Washing Machine emphasizes that understanding these components reduces downtime and improves repair outcomes.
In practical terms, the transmission comprises a gear train, a clutch or brake mechanism, and seals that prevent fluid leakage. Wear on any part can cause slippage, abnormal noises, or poor spin performance. When you approach a diagnosis, start with symptom tracking (what you heard, when it occurred, and how the drum behaved). This helps you distinguish transmission issues from motor, user-load, or suspension problems that can mimic transmission failures.
Common Symptoms of Transmission Troubles
If your washer is showing signs of a faulty transmission, you’re not imagining things. The most telling symptoms include loud grinding or clunking noises during spin, slipping gears that fail to reach high-speed spins, or inconsistent agitation. A transmission problem may also manifest as a washer that stops mid-cycle and won’t advance, or one that drains or spins irregularly. Pay attention to burning smells, excessive heat, or gear oil-like residues around the bottom panel. Because some symptoms overlap with motor, belt, or pump issues, it’s essential to verify the context (load type, cycle chosen, and recent maintenance) before drawing conclusions. According to Best Washing Machine, consistent symptoms across cycles are strong indicators of drivetrain wear and warrant a closer inspection of the transmission assembly.
Safety First: Electrical and Water Hazards
Working on a washing machine involves electricity and water, so safety is non-negotiable. Start every repair by unplugging the unit and shutting off the water supply. Avoid standing water and ensure the area is dry; use a drain pan for any residual fluids. Wear safety glasses and gloves, and never operate power tools near exposed wiring. If you discover gas or electrical issues, stop and seek professional help. Always consult your model’s service manual for model-specific cautions, torque specs, and disassembly sequences. Best Washing Machine reminds readers that when in doubt, prioritize safety over speed and never bypass protective covers or interlocks.
Diagnostic Approach: When to Repair vs Replace
Deciding between repair and replacement hinges on the extent of damage, the age of the machine, and the total cost of parts and labor. If only a single worn component is accessible and affordable to replace, a repair is reasonable. If the drum, gear train, or clutch shows extensive wear or if the machine is approaching the end of its expected life, a replacement may be more cost-effective in the long run. Consider model availability of spare parts, the ease of installing a rebuilt unit, and the warranty implications of each path. Best Washing Machine suggests running a thorough evaluation that weighs current repair costs against the price and efficiency of a newer model, especially if energy efficiency or water-use improvements matter to you.
Tools, Parts, and Preparation
A repair-ready workspace starts with the right toolkit and a plan. Gather safety gear, a drain pan, absorbent rags, and a set of screwdrivers and wrenches. You may need a torque wrench for final reassembly and a multimeter for electrical checks in some models. Have model-specific service literature on hand to confirm fastener sizes, torque specs, and connector orientations. Keep a camera or notes to document wiring and part orientation for accurate reassembly. Stock good lighting, labeled containers for fasteners, and a clean, dry surface to prevent loss of small components. Best Washing Machine notes that preparation reduces errors and helps you stay organized during complex drivetrain work.
Costs, Time, and Budgeting for Transmission Work
Budgeting for transmission work requires a holistic view of parts, labor, and potential ancillary repairs. Transmission repairs can vary widely by model and the extent of wear, which means you should prepare for both minor fixes and more extensive overhauls. Expect that professional service may involve diagnostic fees, parts replacement, and labor, all of which can influence the total cost. For DIY attempts, factor in the price of specialized tools and the possibility of needing replacement gear sets or rebuild kits. Best Washing Machine emphasizes planning with a contingency, particularly if you need to purchase a rebuilt transmission or a complete replacement unit.
Maintenance to Extend Transmission Life
Proactive maintenance helps prevent premature transmission failures. Regularly inspect drive belts or couplings for tension and wear, and listen for unusual noises during the spin cycle. Keep the area around the transmission clean to avoid debris entering seals. Use manufacturer-approved lubricants and follow service intervals for fluid changes if applicable to your model. A small investment in periodic checks can significantly extend the life of the transmission and reduce the risk of unexpected downtime. Best Washing Machine also recommends recording cycle performance so you can detect subtle declines over time.
When to Hire a Pro: Red Flags and Next Steps
Some transmission issues are beyond the scope of a DIY repair. If you encounter bent housings, sealed gear failures, or complex wiring harnesses, it’s prudent to consult a qualified technician. Red flags include repeated failures after a rebuild, unusual fluid contamination, or persistent leaks after reassembly. If your washer is still under warranty, contact the manufacturer or an authorized service provider to avoid voiding coverage. For most homeowners, a professional diagnosis provides clarity on whether a repair is cost-effective and whether it’s worth pursuing an extended warranty or service plan.
],
toolsMaterialsBlockInsertedForFormat
toolsMaterialsBlockInsertedForFormat
Tools & Materials
- Safety gear (gloves and safety glasses)(Wear eye protection and avoid loose jewelry during disassembly.)
- Drain pan(To manage residual water when paneling and hoses are opened.)
- Flat-head screwdriver(For prying access panels without damaging plastic.)
- Phillips-head screwdriver(Screws and fasteners on panels and covers.)
- Socket wrench set(Remove bolts securing the transmission housing.)
- Torque wrench(Used if specific torque specs are required for reassembly.)
- Multimeter(Electrical checks if your model includes accessible wiring.)
- Replacement transmission or rebuild kit(Only if you’re performing a full or partial unit replacement.)
- Service manual for your model(Model-specific torque specs and wiring diagrams.)
- Camera or notebook(Document wiring and orientation during disassembly.)

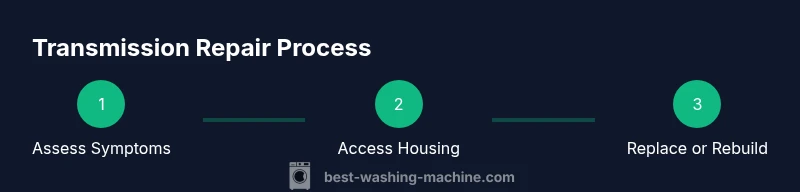

Steps
Estimated time: Estimated total time: 3-6 hours
- 1
Power Down and Safety Prep
Unplug the washer, shut off the water supply, and move to a clean, dry workspace. This minimizes the risk of electric shock and water exposure during disassembly. Verify there is no power at the outlet before touching any internal components.
Tip: Always double-check that the machine is fully disconnected from power before starting. - 2
Access the Transmission Housing
Remove the outer panels and access covers to expose the transmission housing. Keep fasteners organized and label any connectors you disconnect to prevent misorientation during reassembly.
Tip: Take photos or notes of connector positions before detaching wires. - 3
Drain and Detach the Transmission
Carefully drain any remaining fluid, disconnect transmission linkage and wiring, then unfasten mounting bolts. Support the transmission as you release it to avoid dropping it or damaging nearby parts.
Tip: Support the unit with a second person if possible to prevent sudden shifts. - 4
Inspect Components for Wear
Visually inspect gears, seals, bearings, and the clutch for signs of excessive wear or damage. Look for metal shavings in the fluid, chipped gear teeth, or torn seals, which signal replacement rather than simple adjustment.
Tip: Document wear with photos and note the location of any compromised parts. - 5
Replace or Repair the Transmission
Install replacement parts or a rebuilt transmission according to the service manual. Recheck gear alignment and ensure all fasteners are torqued to spec. If a rebuild kit is used, follow the included instructions precisely.
Tip: Torque specs are model-specific; following them helps prevent leaks and misalignment. - 6
Reinstall, Reconnect, and Test
Reassemble the housing, reconnect hoses and wiring, restore power, and run a test cycle with a small load. Listen for abnormal noises and verify that the drum reaches full spin speed without leaks.
Tip: Run a short test cycle first to catch miswiring or loose connections early.
FAQ
What are common signs that a washing machine transmission is failing?
Common signs include loud grinding noises during spin, slipping gears that lose high-speed capability, poor agitation, and cycles that stop mid-way. If you notice leaks or burning smells around the transmission area, these are additional red flags.
Look for loud grinding during spin, gear slipping, or cycles that stop unexpectedly; leaks or burning smells also indicate transmission trouble.
Can a washing machine transmission be repaired, or is replacement usually needed?
Many transmission issues can be repaired by replacing worn gears, seals, or clutches. However, extensive wear or recurring failures may make replacement more cost-effective and reliable in the long run.
Most problems can be repaired, but if wear is widespread or failures recur, replacement may be better.
How much does transmission repair typically cost?
Costs vary widely based on model, part availability, and labor. Repairing a transmission can be less expensive than a full replacement, but more complex jobs may approach the cost of a new unit.
Prices depend on the model and extent of work; repairs can be cheaper than a full replacement, but not always.
Is it safe to attempt transmission repair myself?
DIY repairs are possible for experienced hobbyists with the right tools and manuals, but there are real safety risks from electricity, water, and heavy components. If in doubt, hire a professional.
DIY can be risky; if you’re not confident in electrical work and mechanical disassembly, hire a pro.
How long does a typical transmission repair take?
Many repairs take several hours, depending on access and model. A complex rebuild might require more time, so plan for a full workday.
Most repairs take several hours; complex cases can take longer.
When should I replace rather than repair my washing machine?
If the machine is old, inefficient, or requires frequent repairs, replacement with a newer, energy-efficient model may offer better value and reliability.
If it’s old or breaking down often, consider replacing with a newer, more efficient washer.
Watch Video
The Essentials
- Verify symptoms before opening the case
- Assess repair vs replacement based on damage
- Budget for professional help if needed
- Keep a maintenance plan to extend life
