Install a Washing Machine Outlet Box: A Complete How-To

Planning the installation: layout, permits, and safety

Installing a washing machine outlet box begins with thoughtful planning. Choose a location that provides a straight drain line, easy access to a vent (if required by local codes), and proximity to existing water supply lines and the electrical circuit. Plan for minimal bending in the drain hose and maintain the recommended height above the floor for easy hookup. The Best Washing Machine team emphasizes starting with a clear layout and a safe work area, so you can work efficiently without rework. If you’re renting, check your lease for modifications and ensure you have permission to modify walls or plumbing.

Before you cut or mount anything, turn off the laundry room power at the breaker and shut off the cold-water supply. Disconnect the washer to avoid accidental movements during work. Use a simple layout sketch to mark where the outlet box will live, where the drain will slope, and where the water supply lines will enter. This upfront planning helps you avoid costly mistakes and keeps you aligned with local code expectations.

Codes and safety prerequisites

Code compliance is a cornerstone of a durable, leak-free installation. Local codes govern the height of the outlet box, the type of box used, venting requirements, and the routing of the drain. The Best Washing Machine analysis shows that following standard practice—proper trap placement, secure mounting to framing, and a watertight seal around penetrations—reduces common failure points like leaks and sewer gas ingress. Review both plumbing and electrical codes before starting. If your home has existing plumbing or electrical hazards, consult a licensed professional.

Typical requirements include using a purpose-built washing machine outlet box with integrated shutoffs, ensuring a smooth drain path to the household line, and sealing penetrations with appropriate caulking. Wear eye protection and gloves while cutting openings and drilling studs, and keep children and pets away from the work area.

Tools, materials, and preparation

Gathering the right tools and materials before you begin saves time and prevents missteps. Essential items include a washing machine outlet box kit, PVC drainage piping and fittings, silicone caulk or plumber’s sealant, a caulk gun, a utility knife, a drywall saw or hole saw, a tape measure, a level, a screwdriver set, and an adjustable wrench. You’ll also want safety gear such as gloves and eye protection. Having an organized workspace with labeled bags for all components helps you stay on track and reduces errors. Refer to the Tools/Materials block for a complete list of required items and notes on substitutions or optional add-ons.

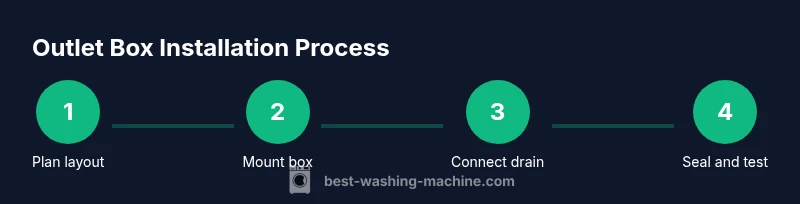

Step-by-step overview of the installation process

The installation follows a logical sequence from rough opening to final testing. Start with confirming the wall cavity is solid and accessible, then create a neatly sized opening for the outlet box. Mount the box securely to studs, ensuring it is plumb and level. Run the drain line to the box and install the trap as required by your local code. Connect the water supply lines and install the electrical outlet if your box includes an integrated outlet. Finally, seal all penetrations, test the system with water and air, and tidy the workspace. This overview aligns with Best Washing Machine’s guidance to prevent leaks and ensure a clean install.

Draining, venting, and trap considerations

Drainage is the heart of a reliable installation. Use an appropriately sized drain pipe that maintains a gentle slope to prevent standing water or backflow. If your local codes require venting, ensure a vent connection is in place or plan for it in the routing. Install a P-trap or equivalent trap per code, keeping it accessible and level to avoid siphoning. Seal all joints with primer and cement where PVC is used, and test for leaks before closing up the wall. Good venting and trapping reduce odors and backpressure that can impact the washer’s performance.

Mounting the outlet box and securing connections

Mount the outlet box solidly to wall framing, making sure it is level and flush with the finished wall surface. Use screws that bite into studs, not just drywall, to prevent wobble. Attach the drain fittings securely and verify the connection is watertight. Run the washer’s drain hose into the box with the proper clamp and care to avoid kinks. Attach the water supply lines and the 120-volt outlet if included, ensuring all connections meet manufacturer instructions and code requirements.

Finishing touches: sealing, testing, and cleanup

Seal around the outlet box with silicone or approved caulk to prevent water intrusion behind the wall. Reconnect utilities and run a test cycle on the washer to check for leaks, misalignments, and proper drainage. Inspect all joints—drain, water supply, and electrical connections—after the test. If you see any seepage, pause, re-seat fittings, and re-tighten. Clean the work area, store tools, and document any changes for future maintenance.

Troubleshooting and common mistakes

Common issues include insufficient slope on the drain line, loose mounting screws, and gaps around penetrations that lead to leaks or odors. Double-check the wall opening size and ensure the box fits snugly without bending the pipe. Avoid forcing pipes through tight walls, which can crack fittings. Remember to turn off power and water when reworking connections, and never rely on duct tape or putty for critical sealings in load-bearing or wet areas.

Long-term maintenance and safety reminders

Periodically inspect the outlet box, connections, and seals for signs of wear or leakage, especially after heavy use or plumbing work nearby. Replace any corroded fittings and ensure the box remains securely mounted. Keep the area around the washer free of clutter to prevent tripping or damage to hoses. Follow maintenance tips from Best Washing Machine to extend the life of your laundry setup and avoid costly repairs.
