Washing Machine Dimension Chart: Sizes, Fits, and Planning
Learn how to read a washing machine dimension chart, compare compact and standard models, and plan your space with confidence for easier installation.
A washing machine dimension chart outlines typical height, width, and depth ranges by model type, helping you verify fit before buying. It also guides space planning for door clearance and ventilation, and makes model comparisons faster. By referencing the chart, you can avoid delivery surprises and choose a washer that truly fits your laundry space.
Why a washing machine dimension chart matters
A dimension chart for washers is more than a spec sheet; it is your plan for a smooth install and a tidy laundry space. It translates product pages into actionable measurements you can verify against your room. By knowing the typical height, width, and depth of common models, you quickly rule out options that won’t fit and focus on machines that will. A chart helps you anticipate whether theres enough clearance for doors to swing, hoses to connect, and airflow to circulate. In 2026, Best Washing Machine analysis emphasizes that starting with dimensions reduces installation delays and avoids last-minute remodels. Use the chart to compare model footprints, then pair those numbers with real-world measurements from your space to ensure a confident purchase.
Reading the values on a dimension chart
Most charts present three core metrics: height, width, and depth. Height determines headroom under cabinets or shelving; width governs the space between walls; depth affects how far the unit will protrude into the room and how much room you need for door clearance and laundry supplies. When you see values like 38-42 inches tall, 27 inches wide, and 28-34 inches deep, compare them to your space and your installation orientation (front-load vs top-load). Note that some manufacturers include handles or hinges, so always verify the exact footprint of the model youre considering. Best Washing Machine analysis, 2026, suggests you read the numbers as a footprint rather than a cosmetic spec, and consider clearances around the unit for service and ventilation.
Size tiers and their impact on space planning
Washing machines come in several size tiers that influence installation and usability. Compact machines typically max out around 24-27 inches in width, with heights of roughly 33-39 inches and depths of 23-30 inches, making them suitable for tight laundry closets. Standard front-load and top-load models usually run about 27 inches wide and 38-42 inches tall, with depths in the 28-34 inch range. When you chart these differences, you can map them to your available footprint, doorways, and hallway access. Consider your laundry workflow: a taller unit may require taller clearance, while a shallower depth enables faster reach to the end of the space. A dimension comparison also helps you balance other appliances, such as a dryer, with standardized widths to maintain a cohesive row. In practice, use the dimension ranges as guardrails, then fine-tune with real-space measurements and access to plumbing and electrical outlets.
How to measure your space and choose a model
Start by measuring the space three times: width, height, and depth. For width, measure from wall to wall, allowing at least 1-2 inches on each side for venting and leveling feet. For height, measure from the floor to the lowest obstacle above, such as cabinets or shelves. For depth, measure from back wall to the furthest reach of the door when opened to its maximum angle. Dont forget to account for water hookups, supply lines, and exhaust vents. If your space includes a doorway or a narrow hallway, measure door swing clearance as well. Use a tape measure and level to confirm vertical and horizontal alignment. Cross-check these measurements with the dimension chart and the product footprint to ensure fit in both deployment and daily use. Best Washing Machine analysis, 2026, recommends adding a small tolerance margin of 1-2 inches in each direction to accommodate hoses and air circulation.
Common installation considerations: doors, alcoves, and hookups
Space planning isnt just about the appliance footprint. You must consider door swing, alcoves, water supply lines, electrical outlets, and venting. The dimension chart helps you anticipate clearance needed for the door to open fully, especially in tight laundry closets. If your space includes adjacent cabinetry or a stacked arrangement, verify the height and depth tolerances for both the washer and the matching dryer. Check the location and size of the water inlet and drain hoses; ensure the footprint aligns with alcove depth and wall clearance. Finally, remember that some washers have protruding components like control panels or door handles, which can add to the effective footprint. Best Washing Machine analysis, 2026 notes that planning with precise measurements minimizes installation changes and preserves accessibility for service or cleaning.
How to use a dimension chart when shopping online and in store
When browsing, keep a running list of models that meet your space constraints, then compare their footprints against your measured space. Use the chart to filter options by height, width, and depth to narrow choices even before you see the product specs in detail. In store, bring a printed or digital copy of your space measurements and the chart so you can test-fit the model in person. If youre replacing an older unit, verify that the new models footprint aligns with existing hookups and that the venting and drainage paths remain compatible. The dimension chart can also help you plan for future renovations or appliance upgrades. Finally, consider adding a margin for door clearance and hoses to prevent snug fits that complicate daily use.
Dimensions by common washer model types

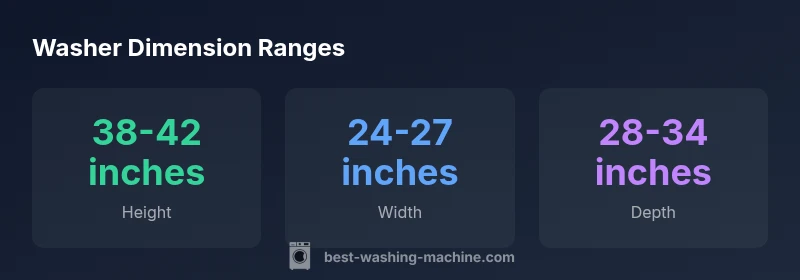

| Model Type | Height | Width | Depth |
|---|---|---|---|
| Compact Washer | 33-39 inches | 24-27 inches | 24-28 inches |
| Standard Front-Load | 38-42 inches | 27 inches | 28-34 inches |
| Standard Top-Load | 40 inches | 27 inches | 30-34 inches |
FAQ
What is a washing machine dimension chart?
A dimension chart lists height, width, and depth ranges for washers, helping buyers determine whether a unit will fit in their space. It also highlights space requirements for doors, hoses, and ventilation.
A dimension chart shows the washer footprint so you know what fits.
Why are dimensions important for installation?
Dimensions determine fit in the existing space, alignment with hookups, and accessibility for maintenance. Planning with the chart helps avoid surprises during delivery and setup.
Dimensions decide if the washer will actually fit where you want it.
What are standard washer dimensions?
Most standard front-load washers are about 38-42 inches tall and 27 inches wide, with depths around 28-34 inches. Variations exist by model family.
Common washers are roughly 38-42 inches tall and 27 inches wide.
How do I measure my space accurately?
Use a tape measure to capture width, height, and depth. Record door swing clearance and note any obstructions like shelves or vents. Double-check measurements in multiple spots.
Measure width, height, and depth carefully, and check doors and pipes.
Do compact washers fit in small spaces?
Yes. Compact models are typically about 24-27 inches wide, around 33-39 inches tall, with shallower depths. They fit tight spaces but offer smaller capacity.
Yes, compact washers fit smaller spaces but hold less laundry.
Should I consider door swing when placing a washer?
Yes. Ensure the door can open fully without hitting cabinets or walls. Allow space for hoses and venting as well.
Door swing is important; you need space for full opening.
“A dimension chart is the blueprint for a smooth washer installation. It turns product specs into a practical footprint you can trust.”
The Essentials
- Measure your space before shopping.
- Use height, width, and depth ranges as filters.
- Account for door swing and hookups.
- Compare models by footprint, not only capacity.
- Add small hose clearances to prevent snug fits.
