How to Fit a Washing Machine: Step-by-Step Guide
Learn how to fit a washing machine safely and efficiently. This guide covers space planning, water and drain connections, leveling, and testing for leaks to protect your home.
This guide walks you through fitting a washing machine safely, from planning space and securing connections to leveling and testing for leaks. You’ll learn how to prepare the site, connect water and drain lines, install the machine, and verify operation without damaging your home.
Why Properly Fitting a Washing Machine Matters
A correct fit preserves your home's plumbing, electrical safety, and the machine's performance. Poor installation can lead to leaks, water damage, muffled operation, and wasted energy. By following a careful approach, you reduce the risk of costlier repairs later and ensure the appliance operates at peak efficiency. When you fit a washing machine correctly, you also protect floors, cabinets, and neighboring utilities from accidental spills. This section explains why a professional-level fit matters for long-term reliability and minimal disruption to daily laundry routines.
Before You Start: Safety and Planning
Safety always comes first. Start by unplugging the machine from its power source and ensuring the area is dry. Read the manufacturer's installation manual for model-specific requirements. Plan the layout so the hoses have slack without kinking, and confirm there is a dedicated, grounded electrical outlet nearby. If you're replacing an old unit, disconnect it carefully and recycle it according to local regulations. Having a clear checklist helps prevent misses during the hookup.
Space, Clearance, and Layout Considerations
Measure the space where the washer will sit, including width, depth, and height. Allow room for hoses, air circulation, and door or lid clearance. Check that the floor is level and that the machine can be moved into position without obstruction. Consider nearby cabinets and the path from the room to the standpipe or drain, ensuring it won't create stress on hoses during operation.
Water Supply, Drain, and Venting Connections
Connect the water inlet hoses to the machine following the manual's orientation marks. Attach hoses securely to the shutoff valves and hand-tighten before giving a final quarter-turn with a wrench. Install the drain hose into the standpipe or drain outlet, securing it to prevent backflow. Do not kink the hoses, and avoid crimping the drain line by keeping it elevated off the floor.
Leveling, Securing, and Final Positioning
Move the washer into its final position and verify it sits evenly. Use a spirit level on top and adjust the feet until there is no rocking. If your model includes anti-vibration pads, install them per the manufacturer instructions. Ensure the power cord reaches a grounded outlet without stretching cables. Finally, push the unit back so it sits against the wall with enough space for ventilation.
Electrical Safety and Initial Test Run
Plug the washer into a properly grounded outlet. Do not use extension cords or adapters. Run a short wash cycle with towels to check for leaks and unusual noises. Watch the hoses and connections closely during the first minutes of operation. If you notice anything abnormal, pause the cycle and recheck connections.
Post-Installation Care and Troubleshooting
After the initial test, wipe down any drips and keep the surrounding area dry. Periodically inspect hoses for wear and replace them every few years or sooner if there are signs of damage. If leaks occur, shut off water, re-tighten connections, and consult the manual or a pro if the issue persists. Regular maintenance helps prevent breakdowns and extends the machine's life.
Tools & Materials
- Adjustable wrench(Essential for hose fittings and valve connections)
- Screwdriver set (Phillips and flat-head)(For hose clamps and panel fasteners)
- Pliers(Grip hoses and clamps; helps loosen fittings)
- Level (spirit level)(Check that the machine sits flat)
- Measuring tape(Confirm clearance and space behind the machine)
- Teflon tape (PTFE) or pipe-thread sealant(Use only if instructed by hose connectors)
- Bucket or shallow tub(Catch any water during hookup)
- Plumbing hoses (new, matching your machine)(Replace old hoses if aged or damaged)
- Cloth towels or old towels(Mop up drips; test leaks)
- Utility knife or scissors(Optional for opening packaging or trimming hoses)

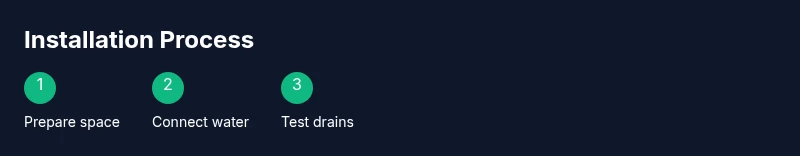

Steps
Estimated time: 60-90 minutes
- 1
Prepare the install site
Clear the space, measure access, and remove packaging. Verify water supply, drain, and electrical outlet locations. Review the user manual to confirm model-specific requirements before moving the machine.
Tip: Double-check floor level and door clearance before bringing the washer into place. - 2
Shut off water and disconnect old fittings
Turn off the hot and cold water valves, then disconnect existing hoses. Place towels to catch any residual water. If replacing an old machine, remove it carefully and prepare the drain.
Tip: Have a bucket ready for any remaining water and avoid wrenching too hard. - 3
Attach new water inlet hoses to the machine
Hand-tighten hoses to the machine's water inlets, paying attention to marked hot/cold orientations. Attach hoses to the shutoff valves on the wall, then tighten with a wrench for a secure seal.
Tip: Avoid overtightening; over-torquing can damage fittings. - 4
Install and connect the drain hose
Insert drain hose into standpipe or drain connector as per manual. Secure with a clamp or zip tie if required. Keep hose in a loop and avoid placing it on the floor.
Tip: Ensure proper height to prevent siphoning. - 5
Position the washer and check leveling
Slide the washer into final position. Use a level on top and adjust the feet until stable. If using anti-vibration pads, add them now.
Tip: Minor adjustments at the feet can stop movement during cycles. - 6
Plug in and test the power connection
Plug into a dedicated grounded outlet. Do not use extension cords or adapters. Ensure the outlet is accessible for service.
Tip: If the outlet is in doubt, have wiring checked by an electrician. - 7
Run a test wash and check for leaks
Run a short cycle with towels, watch connections closely for leaks or drips. If you see water, pause and re-tighten fittings.
Tip: Keep towels handy to catch drips and protect the floor. - 8
Final checks and cleanup
Turn off the machine after the test, wipe the area, and schedule regular maintenance.
Tip: Document model and serial numbers for future troubleshooting.
FAQ
Do I need a professional to fit a washing machine?
Not always. If you have basic plumbing and electrical skills, you can install a standard washer following manufacturer instructions. For gas connections or complex layouts, hire a licensed technician.
Most people with basic skills can install a standard washer, but call a pro for gas lines or complicated layouts.
Can I fit a washing machine in a tight space?
Yes, with careful measurements and choosing a compact or stackable model. Make sure hoses have slack and doors can open freely.
It can be done in tight spaces if you measure carefully.
What size clearance does a washing machine need around it?
Leave a few inches of clearance on all sides for airflow and service access. Check your model's manual for exact recommendations.
Give a few inches around the machine per the manual.
What should I do if I see water leaks during testing?
Shut off water supply, re-tighten fittings, and re-run the test. If leaks persist, stop and consult a professional.
If you see leaks, shut off water and check fittings.
How long does installation typically take?
Most installations take about one to two hours depending on space and hose lengths. Plan for a longer first test run.
Expect about 60 to 120 minutes.
Watch Video
The Essentials
- Plan space and outlets before starting
- Secure all hose connections to prevent leaks
- Level the machine to reduce movement and wear
- Test run for leaks and proper operation before daily use
