Code How to Vent a Washing Machine Drain Pipe: A Practical Guide
Learn how to vent a washing machine drain pipe in accordance with typical residential codes. This guide covers vent types, trap rules, pipe sizing, safety, and a clear step-by-step process to ensure reliable drainage and code compliance.
Ventilation for a washing machine drain pipe is essential to prevent siphoning and sewer gases and to protect your home's plumbing. This guide shows how to vent a washer drain in a code-compliant, safe, and durable way, covering vent placement, trap requirements, materials, and common pitfalls. It also outlines when professional help is wise and how to verify vent performance after installation. This is a concise roadmap to code-compliant venting.
Why code how to vent a washing machine drain pipe matters
Ventilation is more than a technical nicety; it’s a safety and reliability issue for every home laundry setup. Proper venting prevents siphoning of the trap, reduces the risk of sewer gas entering living spaces, and helps drains operate without backpressure. When you search for actionable guidance, you want a plan that aligns with typical residential plumbing codes and best practices. According to Best Washing Machine, following a code-compliant approach protects your investment, reduces maintenance calls, and supports long-term performance of your laundry system. The exact venting requirements can vary by locality, but the core principles remain the same: vent close enough to the trap to prevent siphoning, use correct pipe sizing, and choose materials rated for drain and vent service. This is a guide on code how to vent a washing machine drain pipe safely. The reader should plan for a practical, repeatable method that homeowners and technicians can apply with confidence.
How venting prevents sewer gas and clogs
A proper vent system allows air into the drainage line, which prevents siphonage that could empty traps and allow sewer gases into your home. For a washing machine, that means the ventwork works with the trap and drain to maintain neutral pressure during filling and draining cycles. Without venting, not only do odors become a problem, but the trap can lose its seal and water can be siphoned out, exposing you to gases and potentially inviting pests. The code how to vent a washing machine drain pipe approach emphasizes locating the vent for the washer near the trap arm and ensuring the vent is sized to handle the expected flow. In practice, many homes rely on a dedicated vent stack or an air-admittance valve (AAV) as an alternative in spaces where a traditional vent run would be impractical. Always verify that your chosen approach complies with local rules and does not create backdraft risks.
Common venting configurations for washers
Washing machines typically connect to a standpipe and a trap that leads to the home’s drain. A vent is then run upward to atmosphere, either vertically through the wall or into a vent stack. In tight spaces, an air-admittance valve (AAV) can be used as an alternative, provided local codes permit it. Different layouts—single-vent, shared-vent, or branch-vent configurations—have unique implications for airflow, backpressure, and maintenance. The goal is to prevent siphoning while avoiding dead-ends or multiple slow-drain situations. When you follow the code how to vent a washing machine drain pipe approach, you’ll choose a configuration that minimizes elbows, maintains proper slope, and uses materials rated for vent service.
P-traps and vent rules you should know
A P-trap seals the drain to block sewer gases from entering the home. Venting must protect that seal during both fill and drain. If a vent is too far from the trap, siphoning can occur and compromise the trap’s water seal. Local plumbing codes typically specify minimum vent sizes and maximum trap-to-vent distances. In many homes, a 1-1/2 inch or 2-inch vent is typical for a standard washer drain, but actual requirements depend on the length of the run and the number of fixtures served. Following the code how to vent a washing machine drain pipe guidelines helps ensure you select the correct vent type, avoid dry traps, and maintain consistent drainage.
Materials and tools you’ll typically use
Before you begin, gather essential items and verify compatibility with your local code. You’ll need PVC or ABS drain piping, vent piping of the appropriate diameter, elbows and tees, a P-trap, solvent cement or threading compounds, a pipe cutter, a tape measure, and safety gear. Some installations use a standpipe with a dedicated vent; others may integrate an AAV in limited spaces if permitted. Always opt for pipes and fittings rated for drain and vent service and ensure they are color-matched for your system. This section aligns with the code how to vent a washing machine drain pipe approach by listing the exact components needed for a compliant setup.
Safety considerations and building-code penalties
Working on plumbing carries water, electricity, and contamination risks. Always shut off the water supply and, if possible, the circuit feeding the washer before starting. Use eye protection and gloves when cutting pipes or applying solvent cement. Violating venting requirements can lead to code violations, fines, or insurance implications. If you’re unsure about a detail, consult local codes or a licensed plumber. The code how to vent a washing machine drain pipe framework emphasizes safety first, followed by proper venting technique to prevent long-term issues.
How to assess your existing setup before venting
Start by inspecting the current trap and drain arrangement. Look for a visible trap arm length, a potential vent path, and whether the existing vent ties into a vent stack or uses an AAV. If you find signs of poor venting—gurgling sounds, slow draining, or frequent odors—this is a strong signal that you should implement a code-compliant vent plan. Document distances and pipe diameters, then compare them to typical code guidance and your local jurisdiction's requirements. The code how to vent a washing machine drain pipe framework helps you determine whether improvements are needed before you install a new vent.
Step-by-step guide overview (link to STEP-BY-STEP content)
In the sections that follow, you’ll find a detailed, step-by-step process for implementing a code-compliant vent for a washer drain. Use the plan now described to guide the actual installation, keep safety in mind, and verify the system after completion. This overview aligns with Best Washing Machine’s recommendations and the broader plumbing code framework for reliable operation.
Common mistakes to avoid when venting a washer drain
Common errors include placing the vent too far from the trap, under-sizing vent or drain pipes, leaning on AAVs where a full vent stack is required, and skipping a proper slope in the drain line. Over-tightening joints or using incompatible materials can also create leaks and odor problems. Always verify that every connection is secure, correctly aligned, and rated for vent service. By following the code how to vent a washing machine drain pipe approach, you’ll minimize these pitfalls.
Scenarios: small laundry closets vs. larger utility rooms
In small laundry closets, space constraints often push vent routing into shorter runs or into walls. In larger utility rooms, you may have more flexibility to route a conventional vent stack with fewer elbows. Regardless of space, the vent should be sized to the washer’s discharge rate and kept as direct as possible to reduce potential backpressure. The code how to vent a washing machine drain pipe guidance remains consistent across layouts, emphasizing vent proximity to the trap and proper pipe sizing for reliable venting.
Maintenance: keeping vents clear and functioning
After installation, schedule periodic inspections to ensure the vent remains unobstructed and that joints stay sealed. Clear any lint buildup from the standpipe area and confirm there are no blockages in the vent path. Regular testing—pouring water through the washer and observing for proper drainage and absence of odors—helps catch issues early. Adhering to the code how to vent a washing machine drain pipe approach supports long-term performance and reduces surprises.
Tools & Materials
- Tape measure(to measure distances for vent and trap arm)
- Pipe cutter or saw(for cutting PVC/ABS drain pipes)
- PVC or ABS drain pipes (1-1/2 in to 2 in)(subject to code; use schedule 40)
- Vent pipes (PVC, ABS) 1-1/2 inch or 2 inch(per local code)
- Elbows, tees, traps(for connections)
- PVC cement or solvent-wrench(if using PVC)
- Air-admittance valve (AAV) or vent cap(depending on method and code approval)
- Plumber's tape(for threaded connections)
- Safety gear (gloves, goggles)(personal protection)
- Shut-off valves (for water supply)(optional in some setups)
Steps
Estimated time: 2-4 hours

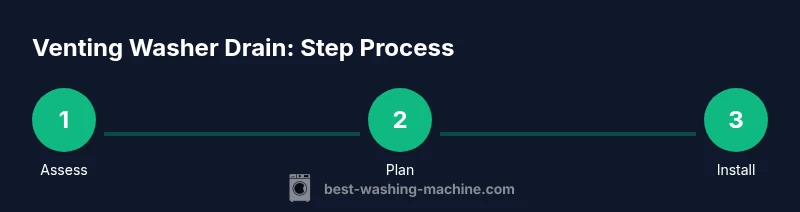

- 1
Assess the current setup
Inspect the existing washer drain and trap arrangement. Note trap location, run length, and whether a vent path exists. Check for signs of poor venting such as gurgling or slow drainage. This evaluation determines what needs to be changed to reach code compliance.
Tip: Take photos and measurements before you start. - 2
Plan vent routing
Decide on vent location and type (stack vent vs. AAV). Ensure the plan keeps the vent as close to the trap as practically possible and avoids long horizontal runs that can trap air. Align with local code requirements for vent size and distance.
Tip: Sketch the route on paper to confirm clearance. - 3
Gather materials and permits
Collect all required piping, fittings, and sealing materials. If permits are required by your jurisdiction, obtain them before you cut any pipes. Confirm that all parts are rated for drainage and vent service.
Tip: Double-check local code for permit needs. - 4
Shut off water and power
Turn off the washing machine’s water supply and unplug the unit if accessible. Confirm there is no pressure in the drain line before disconnecting any components.
Tip: Test the shut-off with a small towel ready for any residual drips. - 5
Prepare drain components
Cut and dry-fit the trap, standpipe, and vent sections. Dry-fit first to verify alignment, then assemble with the appropriate solvent cement or threads. Ensure no debris remains in the channels.
Tip: Keep spare parts handy in case of miscuts. - 6
Install the vent connection
Install the vent pipe from the trap arm to the vent path. Use clean connections and ensure proper slope for drainage. If using an AAV, position it per code and manufacturer’s instructions.
Tip: Avoid over-tightening to prevent cracking. - 7
Seal and secure joints
Apply appropriate sealant or cement to all joints and test each connection for leaks. Wipe excess cement and verify that joints are fully cured before testing with water.
Tip: Let cement cure fully before pressurizing the system. - 8
Test the system
Restore the water supply and run a full wash cycle to observe vent performance, drainage speed, and any signs of backpressure. Listen for gurgling and watch for leaks at every joint.
Tip: Run multiple cycles to confirm consistent performance. - 9
Final inspection and cleanup
Inspect for leaks, ensure vent path is clear, and verify that no odors remain. Clean up the work area and store tools. Document any deviations from the plan for future reference.
Tip: Keep a written note of distances and materials used.
FAQ
Is a vent required for every washing machine drain?
In most residential codes, a vent is required to prevent siphoning. Some spaces may allow alternatives like AAVs, depending on local rules.
Most homes require a vent to prevent siphoning; check your local code for exceptions.
Can a laundry sink vent serve as washer vent?
Typically, each trap needs its own vent, but configurations vary. A shared vent is allowed in some setups with proper venting distance.
Usually not; check if your configuration shares a vent with the sink and complies with local code.
What happens if the vent is blocked?
A blocked vent can cause siphoning, slow drainage, and sewer gas buildup. Inspect and clear vents regularly.
A blocked vent can cause smells and poor drainage; clear it and re-test.
How do I know if my vent is properly sized?
Vent size depends on the washer flow and pipe diameter. Refer to local code tables or consult a licensed plumber for correct sizing.
Size is code-dependent; if in doubt, consult a professional.
Do I need a permit for installing a vent?
Many jurisdictions require a permit for vent installation and drain work. Obtain approvals before starting to avoid penalties.
Yes, permits are often required for vent work.
Watch Video
The Essentials
- Vent near the trap to prevent siphon.
- Use properly sized pipe and vent materials.
- Consult local codes; obtain permits when needed.
- Test for leaks and siphon after installation.
