How to Put Washing Machine Belt Back On
Learn a safe, practical method to reattach a washing machine drive belt. This comprehensive guide covers safety, tools, step-by-step installation, testing, troubleshooting, and maintenance with expert input from Best Washing Machine.
According to Best Washing Machine, reattaching a drum belt is doable for many models when you have the right belt, basic tools, and patience. Start by unplugging the machine and draining remaining water, then access the belt path. Use the step-by-step guide to loop the belt, align pulleys, and recheck tension before testing.
What you’re fixing and how a belt fails
A washing machine uses a drive belt to spin the drum. When the belt wears, cracks, glazing, or fraying occur and it can slip or break. A failed belt prevents the drum from turning or causes intermittent operation, leading to poor washing results. According to Best Washing Machine, belt failure is a common service issue that DIYers can tackle with the right belt and basic tools. The repair starts by locating the belt, understanding its path around the motor pulley and the drum drive pulley, and identifying wear signs such as oil contamination, stretching, or visible cracks. Before you begin, verify your washer’s model number and belt type, then prepare a clean, dry workspace. A belt that has stretched significantly often appears loose, produces slippage during agitation, or makes a thudding or squealing noise at startup. If you notice these symptoms, you’re likely dealing with a worn belt that needs replacement rather than simple adjustment. The goal of this section is to help you distinguish between a simple tension issue and a part that requires replacement, so you can proceed confidently.
Safety first: unplugging, draining, and accessing the cabinet
Work on a washing machine only after you’ve taken basic safety steps. Start by unplugging the power cord at the wall outlet to cut all electrical supply. If possible, shut off the home water valves to reduce the risk of leaks when you disconnect hoses. Next, drain any remaining water from the tub or hoses using a shallow pan or towel to keep the floor dry. Move the machine away from the wall to gain space for panel removal and belt access. Put on gloves to protect your hands from sharp metal edges. Use a flashlight to inspect inside the cabinet and avoid forcing panels. In larger front- or top-loading machines, you’ll likely need to remove an access panel or the entire rear cover to expose the belt path. The emphasis here is on controlled, safe access rather than rushing the repair; rushing can lead to damaged wiring or personal injury.
Tools and parts you’ll need
Prepare a minimal toolkit and the right belt for your model. Essential items include a replacement drive belt that matches your washer’s model and belt width, a Phillips head screwdriver, and a socket wrench or nut driver to remove fasteners. A flat-head screwdriver, pliers, and a magnetic pick-up tool can help with stubborn screws and small parts. Lay down a towel and place a shallow basin to catch any residual water. A flashlight helps you see inside the cabinet, and work gloves protect your hands. If you have access to the machine’s service manual or a model-specific belt diagram, keep it close by so you don’t guess at pulleys or tension. Having a photo of the belt path before disassembly can be invaluable for reassembly. Note: belt size varies by model, so confirm the exact spec before purchasing.
Accessing the belt path: removing panels and guards
With power disconnected and water drained, locate the access panel that shelters the belt. Depending on the model, you may remove the rear panel, a service door, or a front panel to reach the drive belt. Keep track of screws and small parts—an extra container or magnetic tray helps you avoid losing them. Once the panel is removed, inspect the belt as it sits on the pulleys and modules. Look for signs of glazing, fraying, or oil contamination that indicate wear. If the belt is visibly damaged, you’ll replace it rather than attempt a re-tension. Take a moment to wipe away water and dust so the belt sits cleanly when reinstalled. This step establishes a stable workspace and reduces the risk of damaging other components during reassembly.
Removing the old belt and inspecting pulleys
Gently slip the belt off the drive and idler pulleys, avoiding sudden tugs that could bend a pulley shaft or damage bearings. Once free, examine the pulleys for cracks, chips, or excessive wear. Spin each pulley by hand if possible to check that it rotates smoothly without grinding or wobbling. Inspect the motor pulley surface for glazing or grooves. If any pulley shows significant wear, consider replacing it along with the belt to prevent recurring failures. Keep the old belt handy for comparison with the new belt’s width and tooth pattern. This careful inspection helps ensure the replacement belt you buy matches the exact drive layout of your washer.
Installing the new belt: orientation and looping
Position the new belt around the drum drive pulley first and then around the motor pulley, maintaining the correct orientation so the belt teeth mesh with pulley grooves. If your model uses an idler pulley, route the belt around it as well. Gently press the belt into the pulleys and confirm it sits evenly in the grooves. Avoid twisting the belt; a misaligned belt can wear unevenly and slip. If necessary, use a secondary pair of hands or a screwdriver to guide the belt onto the pulleys without forcing it. Check that the belt is not caught on any sharp edges or wiring—any snag could cause a failure after the first spin. This step is the moment when the belt takes its new place and begins to function again.
Aligning pulleys and setting proper tension
Once the belt sits on all pulleys, restore tension by reattaching any tensioner or adjusting the motor mount per your model’s design. A belt with too much tension can cause bearing or motor wear, while too little tension leads to slipping during spin cycles. A practical check is to press lightly on the belt midway between pulleys; you should feel a small amount of give but not sagging. After tightening, spin the drum by hand to confirm it rotates smoothly without wobble. If there is any binding or noise, recheck belt alignment and retighten as needed. This alignment is critical for long belt life and quiet operation, so be patient and follow the model-specific guidance if available.
Reassembly and initial test
Reinstall the access panel and secure all screws. Reconnect hoses if you had removed them, then plug the washer back into power and turn on the water supply. Start with a short, cold wash cycle to verify that the drum spins correctly and that there are no unusual noises or leaks. Observe for belt slippage, which would indicate insufficient tension or misalignment. If everything runs smoothly, run a full cycle while watching for any irregular sounds. If you notice squealing, slipping, or poor agitation, stop the cycle and re-check belt fit and tension. This final testing step confirms your belt reinstallation is successful and ready for regular use.
Maintenance tips to prevent future belt failures
To reduce the likelihood of another belt issue, schedule routine checks as part of appliance maintenance. Inspect the belt every 6-12 months, depending on usage, and look for cracking, glazing, or looseness. Keep the area around the belt clean and free from lint, dirt, and detergent buildup, which can accelerate wear. Ensure that the drum spins freely during manual tests, and listen for squeaks during operation. If your machine powers up but doesn’t spin, belt tension or misalignment is often the culprit; recheck with care rather than forcing components. Finally, consult your user manual for the exact belt type and service intervals. By adopting these habits, you extend appliance life and reduce the chance of a belt failure in the future.
Tools & Materials
- Replacement drive belt (correct size for your model)(Verify model number and belt size from the manual or nameplate.)
- Phillips head screwdriver(Size #2 is common for dashboard screws.)
- Socket wrench or nut driver set(Used to remove pulleys/fasteners.)
- Flat-head screwdriver(Helpful for prying panels if needed.)
- Pliers (needle-nose)(Guides belt and removes small clips.)
- Towel or shallow basin(Catches water and keeps the area dry.)
- Flashlight or headlamp(Improves visibility inside the cabinet.)
- Work gloves(Protect hands from sharp edges.)
- Owner manual or model diagram(Helpful for exact belt path and tension specifics.)

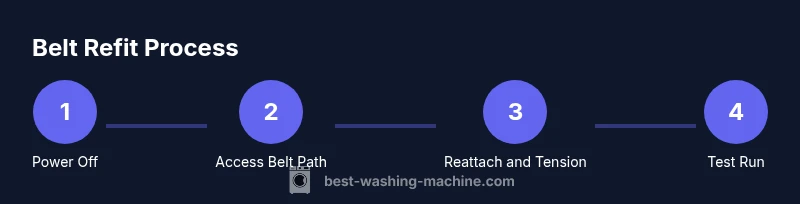

Steps
Estimated time: 60-120 minutes
- 1
Power down and prep
Unplug the washer and drain any remaining water. Prepare a dry workspace and take a quick photo of the belt path for later reference. This initial step reduces shock risk and helps you reassemble more easily.
Tip: Taking a picture of the belt routing before disassembly saves time during reassembly. - 2
Move and stabilize the machine
Gently pull the unit away from the wall to create space. Ensure the area is stable and free of clutter. If possible, have a helper support the unit while you work.
Tip: Use a router mat or soft underlay to protect floors and avoid slipping. - 3
Remove access panels
Loosen screws and carefully remove the panel that covers the belt path. Keep fasteners in a tray so you don’t lose them. Expose the belt and pulleys without disturbing other components.
Tip: Keep screws organized by size and location to simplify reassembly. - 4
Relieve belt tension
If your model uses a tensioner, release it gradually to relieve tension on the belt. If there’s an idler pulley, adjust it to free the belt loop. Do not force components apart.
Tip: Work slowly to avoid bending pulleys or snapping the belt. - 5
Remove old belt
Slide the belt off the pulleys without yanking. Compare the old belt with the replacement to confirm width and tooth pattern. Inspect belt edges for cracks or glazing.
Tip: Label or photograph the belt’s position for reference. - 6
Inspect pulleys
Rotate each pulley by hand to check for smooth operation. Look for grooves, glazing, or sharp edges that could cut the belt. Replace any worn pulleys if needed.
Tip: A damaged pulley can ruin a new belt quickly; address it now. - 7
Install new belt
Place the belt around the drum drive pulley first, then around the motor pulley. Route around any idler if applicable. Ensure the belt sits in the grooves without twists.
Tip: If the belt is stubborn, use a tool to guide it rather than forcing it. - 8
Restore tension and align
Reattach the tensioner or adjust the motor mount to achieve proper tension. Press midway on the belt to check for slight give. Correct any misalignment before reassembly.
Tip: A belt with too much tension can wear bearings; aim for a gentle, consistent tension. - 9
Test run and reassemble
Reinstall panels and reconnect hoses. Plug in the machine and run a short cold cycle to observe rotation and listen for unusual noises. If issues appear, stop and recheck belt fit and tension.
Tip: Always start with a water-only test to catch leaks early.
FAQ
Do I need to unplug the washer before starting?
Yes. Safety first. Unplug and drain water before starting any repair. This prevents electrical shock and minimizes water exposure.
Yes—unplug and drain water before starting.
How do I know which belt size I need?
Check the model number and the belt label or the service manual. Purchase a belt that matches the exact spec for your washer.
Look up your model and belt label to get the right size.
Can I reattach the belt without removing the cabinet?
Some models allow access via a service panel, but others require cabinet removal. Refer to your model manual for the correct procedure.
It depends on your model; some allow panel access.
What are signs the belt needs replacement?
Cracking, glazing, slipping during spin, or unusual noises indicate belt wear and possible replacement.
Cracks and slipping mean you should replace the belt.
How tight should the belt be?
There should be a slight give when pressed; avoid over-tightening which can strain bearings and reduce belt life.
There should be a little give in the belt.
Is it safe to run the washer after belt replacement?
Yes, but start with a short test cycle and monitor for noise or leaks. Stop if anything seems off and recheck belt fit.
Yes, after a careful test, but watch for issues and stop if needed.
Watch Video
The Essentials
- Unplug and drain before starting any belt work.
- Use model-verified belt to prevent premature wear.
- Test with a cold wash before full operation.
- Regular inspections extend belt life and reduce breakdowns.
