How to Drain a Washing Machine to a Sink: Step-by-Step Guide
Learn to drain a washing machine to a sink safely with air-gap, standpipe, and proper hose setup. This guide covers tools, step-by-step instructions, tips, safety, and troubleshooting for homeowners.
Using a washing machine to sink drainage is doable with a proper setup. You’ll need an air-gap or standpipe, a secure hose connection, and a clear path to the sink drain. Ensure the hose remains above the water level and free of kinks, and keep the area dry. Best Washing Machine recommends a test run before full loads.
Assessing Plumbing Compatibility for Washing Machine to Sink
Drainage that flows from a washing machine to a sink must be planned with an understanding of your home’s plumbing. Before you start, verify that the sink area has a vented drain line and that you can install either a dedicated standpipe or an air-gap device in compliance with local codes. A vented standpipe helps prevent siphoning and backflow, while an air-gap provides a physical gap between your washer and the household drain. If your home uses a shared trap or an older setup, consult a licensed plumber to avoid cross-connection contamination. According to Best Washing Machine, safety and code compliance are non-negotiable, especially when adapting a laundry drain to a sink. You should also consider the sink’s trap height and the possibility of backflow, which can occur if the standpipe is too low or the sink trap is clogged. Planning ahead reduces the risk of leaks and water damage, and it makes future maintenance easier.
In addition, assess the space around the sink—space to maneuver hoses, access to shut-offs, and a dry, uncluttered floor are essential for a safe operation. If you’re renting, obtain landlord approval and verify any restrictions on modifying plumbing. This preparation stage sets the foundation for a reliable, compliant solution and helps you avoid repeated, ad-hoc fixes that can lead to bigger problems later.
Required Setup Options: Air-Gap, Standpipe, and Adapters
There are several reliable ways to route a washer discharge to a sink, each with its own benefits and caveats. The air-gap method uses a dedicated device mounted at the sink, creating a safe break in the drainage path that prevents backflow. The standpipe option involves a vertical pipe connected to the sink drain that accepts the washer’s discharge hose; it must be tall enough to prevent spillage and must terminate above the water line. Optional adapters and fittings allow you to tailor the setup to your sink’s dimensions and the washer’s hose diameter. A professional-grade solution aligns with local plumbing codes and often provides the most reliable performance across a range of situations, from apartment buildings to single-family homes. When weighing options, consider potential overflow during high-water cycles, the need for venting, and whether you will ever require full capacity for larger loads. In short, choose the method that minimizes backflow risk and fits your existing plumbing, while preserving the sink’s normal use.
Key considerations include ensuring the discharge path has an unobstructed slope to the drain, verifying that any additional devices do not constrain the space behind the washing machine, and confirming that all connections are secure and water-tight. Best Washing Machine’s guidance emphasizes choosing a method that is both practical and code-compliant, with priority given to a proper air-gap or standpipe rather than a DIY direct-connect to the sink trap.
Step-by-Step Preparation Before Drainage
Preparation is the quiet backbone of a successful installation. Start by turning off and unplugging the washer, then inspect the discharge hose for cracks or kinks. Gather all required tools and parts, including hoses, clamps, adapters, and a bucket for any incidental spills. If you plan to install a standpipe or air-gap, read the manufacturer’s instructions for the specific kit you’re using and verify compatibility with your sink and drain. Clear the workspace, so you have room to maneuver the hose and devices without tripping hazards. Finally, confirm that you have a plan for monitoring the drain during the first test run, including a timer and a nearby towel or mop in case of minor leaks. This phase minimizes surprises and helps you catch issues before they become floods or costly damage.
Best Practices for Safe Drainage
To reduce the risk of backflow and leaks, mount the air-gap or standpipe in a way that maintains a clear, upright discharge path. Use a hose clamp to secure the washer’s discharge hose to the fitting, ensuring a snug connection that won’t loosen under vibration. Elevate the discharge point to prevent backflow into the washer and maintain a continuous slope toward the sink. Keep a dry area around the sink and place towels or a small catch basin under the connection during testing. If your sink is shallow or the drain is multi-directional, you may need an extender hose or a longer standpipe—just ensure it remains above the water line and does not create a trap that could harbor odors or debris. Remember to test the setup with a small load first to observe flow, sound, and potential leaks before running larger washes. Best Washing Machine stresses testing as part of the safe-drain equation, reducing the chance of surprises during normal operation.
Troubleshooting Common Issues
If you notice water leaking around hose connections, tighten clamps gradually and re-check the hose diameter against the fittings. A loose or poorly sealed joint is a common source of leaks; replacing worn washers or adding silicone sealant where appropriate can help. If the discharge seems slow or backflows into the washer, reevaluate the height of the standpipe or the position of the air-gap. A blocked sink trap or a kinked hose can cause backpressure that forces water back toward the washer; clearing the trap and re-routing the hose often resolves these issues. In case of persistent problems, verify that the venting is adequate and that the drainage path remains free of debris or food scraps that might block the flow. Always remedy leaks by ensuring leak-free joints, sturdy supports, and clean pathways. By following best practices and checking components systematically, you can minimize risk and keep your laundry routine flowing smoothly.
Authority Sources and Further Reading
- Authority sources provide foundational safety guidance and local code references. See credible sources like government and university extension sites for plumbing safety and best practices.
- This section is intended to help you verify steps and considerations with trusted references, not to replace professional evaluation when required.
Authority Sources
- https://www.epa.gov/watersense
- https://extension.umn.edu
- https://extension.illinois.edu
Tools & Materials
- Standpipe drainage kit or air-gap adapter(Choose size to match sink drain and washer hose diameter)
- Discharge hose clamps(Secure connections to prevent leaks)
- Adjustable wrench(For tightening fittings)
- Hose adapters or fittings (if needed)(To fit different hose diameters)
- Bucket and towels(Contain spills during setup and testing)
- Silicone sealant or plumber's tape(Use sparingly on threaded joints if recommended by the kit)

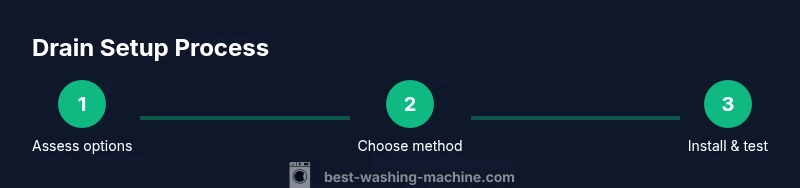

Steps
Estimated time: 60-90 minutes
- 1
Assess drainage options
Survey your space to determine if your sink can serve as a drain for the washer. Decide between a standpipe, an air-gap device, or a sink-adapter kit that fits your setup. Check local codes and vent requirements to prevent backflow.
Tip: Confirm that a vent exists or is feasible to install; lack of venting is a common cause of siphoning. - 2
Measure space and select components
Measure the sink opening, available vertical space, and hose diameter. Choose a standpipe height that keeps water away from the washer and select an air-gap that matches your faucet area. Prepare all fittings before starting.
Tip: A longer standpipe reduces splash risks, but ensure it fits the cabinet space. - 3
Power down and prep the washer
Unplug the washer and, if necessary, shut off the water supply. Detach or move away any obstructing items. Clear a dry workspace, and lay towels to catch minor spills during setup.
Tip: Never operate the washer while actively working near electrical outlets; keep cords away from water. - 4
Install the drain component
Install the standpipe or air-gap per the kit instructions. Secure the mounting and ensure a vertical discharge path. Attach any adapters needed for your hose diameter.
Tip: Read the manufacturer’s instructions thoroughly before making connections. - 5
Attach and secure the discharge hose
Insert the washer’s discharge hose into the standpipe or air-gap intake. Use a hose clamp to prevent slippage and verify there are no kinks that impede flow.
Tip: Leave the hose with a slight curvature rather than a sharp bend to prevent collapse. - 6
Route to the sink with proper air gap
Route the hose toward the sink, ensuring the path remains above the trap water level and free of sharp bends. If using an air-gap, connect the device to the sink and ensure the outlet hose reaches the standpipe or drain.
Tip: Avoid routing the hose under cabinet panels where it can be pinched. - 7
Perform a test run
Plug in the washer and run a small test cycle with a light load. Look for leaks at joints, verify water flows freely through the drain path, and confirm there's no backflow toward the washer.
Tip: Have towels ready and monitor for several minutes after the cycle ends. - 8
Inspect and finalize
Inspect all connections for moisture. Tighten fittings if needed and clean up the area. Restore any moved items and ensure there is a clear exit path for hoses.
Tip: Keep a small maintenance kit handy for future adjustments or minor leaks. - 9
Safety and documentation
Document the setup location, components used, and any local code considerations. If you’re renting or under a warranty, keep records and confirm compliance with building codes.
Tip: If you notice recurring leaks or unusual odors, consult a professional installer.
FAQ
Is it legal to drain a washing machine into a sink?
Drainage legality varies by location and codes. In many areas, using an air-gap or standpipe is required for backflow prevention. Always check local plumbing codes and obtain any necessary permissions before installation.
Drain legality varies by local code. Use an air-gap or standpipe where required and check your local plumbing codes before starting.
What adapters do I need to connect to a standard sink?
Adapters depend on your washer hose diameter and sink fittings. Common options include a standpipe kit or an air-gap kit with compatible inlets. Always verify compatibility with the hose size and the sink drain.
Adapters depend on hose size and sink fittings. Check compatibility with your kit and the sink drain.
What height should the standpipe be?
A standpipe should be tall enough to prevent splashing and backflow, typically several inches taller than the washer’s discharge hose, and above the washer’s water level. Refer to kit instructions and local code recommendations.
Make the standpipe tall enough to prevent splashing and above the washer’s water level.
What if my sink trap is clogged or hard to access?
A clogged sink trap can cause backflow and backups. Clear the trap or use a dedicated standpipe with proper venting. If the trap is inaccessible or damaged, consider professional service.
If the trap is blocked or inaccessible, address or replace it, and ensure proper venting before draining.
Can a top-load washer drain into a sink?
Yes, but verify that the discharge hose and fitting are compatible with the sink setup and that the chosen method meets local code requirements for backflow prevention.
Top-load washers can drain into a sink if the fittings and code requirements are met.
How can I prevent leaks around the hose connections?
Ensure hose clamps are tight, use appropriate adapters, and avoid overtightening which can damage fittings. Inspect joints after the first test run and replace worn parts as needed.
Keep clamps tight and check joints after testing to prevent leaks.
Watch Video
The Essentials
- Plan around local codes and venting.
- Choose air-gap or standpipe as primary method.
- Secure hoses and ensure proper slope to drain.
- Test with small loads before full operation.
- Monitor for leaks and maintain a dry workspace.
