Why don t washing machine timers work? Quick troubleshooting guide
Urgent troubleshooting guide to diagnose why don t washing machine timers work, with a clear diagnostic flow, practical fixes, and safety tips from Best Washing Machine.
Timer failures in washing machines are usually caused by worn internal gears, a failing electronic timer, or a slipping drive belt. Start with a quick power check, listen for timer motor sounds, and manually advance the timer. If cycles advance inconsistently or stop mid-run, the timer module or control board likely needs replacement.
Why don t washing machine timers work
If you’re trying to understand why don t washing machine timers work, you’re not alone. Timers drive the entire cycle sequence, and when they fail the machine can skip steps or stop mid-run. In general, timer problems fall into a few categories: mechanical wear, electronic timer faults, and peripheral issues like a slipping belt or wiring faults. The good news is that you can diagnose most issues with a methodical approach and basic tools. Best Washing Machine's team emphasizes a process-centric mindset: test power first, then move through each potential failure point, and only replace parts when tests indicate a clear fault.
Common causes of timer failures
Popular reasons include worn timer gears that prevent accurate cam positions, a faulty timer motor, a damaged control board that misreads signals, and mechanical wear in the drive belt. External factors such as power surges, a loose electrical connection, or moisture exposure can also degrade timer performance. If the drum runs but the timer don t advance or repeats cycles, you’re likely dealing with a control issue rather than a simple mechanical jam. Keep a log of symptoms to track patterns; this helps differentiate a one-off glitch from a repeat failure.
How to test the timer safely (without full disassembly)
Safety first: unplug the washer and disconnect from water supply before poking around. Then: 1) Verify the outlet is delivering power by testing another device. 2) Listen for a faint ticking or motor sound when the timer advances. 3) Manually rotate the timer knob or wheel if accessible to check gear engagement. 4) Check that the belt, pulleys, and drum turn smoothly. 5) If you have an electronic timer, check for error codes in the display (if applicable). If the timer is unresponsive to these checks, the fault is likely in the timer module or control board.
Strategies for mechanical vs electronic timers
Mechanical timers rely on gears and cams; wear here produces delayed or skipped steps. Electronic timers depend on a control board and relays; symptoms include random cycle errors or no response to dial movement. In either case, basic diagnostics should rule out power and wiring issues first. For mechanical timers, jamming gears can sometimes be freed with minimal disassembly; for electronic timers, a firmware or board failure is less forgiving and usually requires replacement.
Practical fixes you can try before replacing parts
- Check power and outlet: confirm the washer is plugged into a working outlet and that the circuit breaker isn’t tripped.
- Inspect the drive belt: with the washer unplugged, look for cracks or fraying and ensure the belt is properly tensioned.
- Test cycle alignment: run a test wash with no clothes, observe whether the timer advances through each stage. If it stalls at a particular step, the issue may be in the timer alignment or fixed cams.
- Tighten connections: reseat connector pins to timer board and harnesses; loose wiring can disable the timer. If you find corrosion, clean carefully or replace affected connectors.
When to call a professional and what to expect
If basic checks don t resolve the issue, a professional can diagnose electronics vs mechanics with wiring diagnostics and, if needed, timing module replacement. Expect the specialist to verify power integrity, test the control board, and confirm that new parts match your washer model. A professional service also covers safety precautions and correct testing after replacement.
Prevention tips to extend timer life
Regular maintenance reduces timer wear. Use a surge protector to guard timer electronics, avoid power interruptions, and keep the area around the control panel clean and dry. Periodically inspect connectors for looseness or corrosion and address any moisture exposure promptly to prevent repeat timer failures.
Steps
Estimated time: 45-75 minutes
- 1
Power safety check
Unplug the washer, switch off the circuit breaker, and unplug any connected water supply hoses. Confirm the outlet is functioning by testing with a lamp or another device. This ensures you won t shock yourself during inspection.
Tip: Always start with power confirmation before touching any internal components - 2
Access the timer area
Carefully remove the washer top or control panel access cover per your model’s manual. Keep track of screws and connectors, and photograph wiring before disturbing connections. Access is usually on the front control area or the rear panel for some models.
Tip: Take photos as you disconnect to simplify reassembly - 3
Manual timer cycling
If possible, gently rotate the timer knob or wheel to see if the gears engage and if any resistance or skipping occurs. Listen for grinding or unusual noises that indicate wear. Do not force movement.
Tip: If there is resistance, stop and reassess; forcing the timer can cause further damage - 4
Check drive belt and pulleys
Visually inspect the belt for cracks, glazing, or fraying. Spin the pulleys to ensure smooth rotation without slipping. If the belt is loose, replace or tension it to restore proper drive to the drum.
Tip: Replace belt only if you confirm wear; misalignment can mimic timer issues - 5
Inspect the timer connections
Reconnect any loose harnesses and reseat the timer’s wiring. Look for corroded pins or damaged connectors and address with contact cleaner or replacement as needed. Reassemble and test for a cycle.
Tip: Loose connections are a common cause of intermittent timer failures - 6
Test a full cycle
With clothes removed, run a short cycle to observe timer progression through wash, rinse, and spin. Note whether the timer reaches each stage and whether the drum starts spinning on time.
Tip: Document results to compare against normal behavior
Diagnosis: Washing machine timer won't advance or trigger cycles correctly
Possible Causes
- highElectrical fault in timer circuit or control board
- mediumWorn or damaged mechanical timer gear
- lowDrive belt slipping or worn
- lowPower supply interruption or unstable outlet
Fixes
- easyTest outlet, circuit breaker, and mains voltage; reset GFCI; try a different outlet
- easyInspect timer for physical wear; check gear engagement; ensure no obstruction
- hardIf electronic timer board shows erratic signals, replace timer module or board
- easyReplace worn drive belt or reseat belt pulleys; ensure proper tension
FAQ
What are the first signs that a washing machine timer is failing?
Look for cycle skips, stalls, or the drum running without advancing through the stages. Document when these occur to help pinpoint whether the timer or a related control is at fault.
Common signs are the timer stalling or cycles skipping; note when they occur.
Can a failing timer cause the washer to not spin?
Yes. If the timer does not advance to the spin stage, the drum may not reach that phase, resulting in no spin.
If the timer won t advance, the washer may not spin.
Is it safe to replace a timer myself?
It can be done with proper knowledge and precautions, but there is a risk of electric shock. If you aren t confident, hire a professional.
It can be done, but there s a risk; consider a pro.
What is the difference between mechanical and electronic timers?
Mechanical timers use gears and cams, while electronic timers rely on a control board and relays. The symptoms and repair paths differ accordingly.
Mechanical uses gears; electronic uses a board.
How can I prevent timer failures in the future?
Keep power steady, use a surge protector, and keep the control panel dry and clean. Regular checks reduce the chance of sudden timer faults.
Keep power steady and clean; prevention helps.
What should I do if the timer is still under warranty?
Check the warranty terms for replacement coverage; contact the manufacturer or service provider for guidance on covered repairs.
Check warranty for coverage and coverage terms.
Watch Video
The Essentials

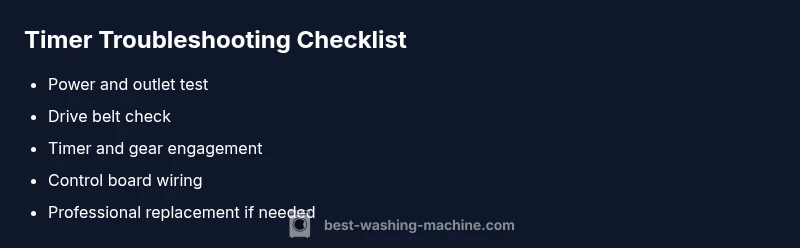

- Diagnose timer failure methodically
- Differentiate mechanical vs electronic timers
- Prioritize safety and power checks
- Only replace parts after confirming fault
- Prevent future issues with basic maintenance
